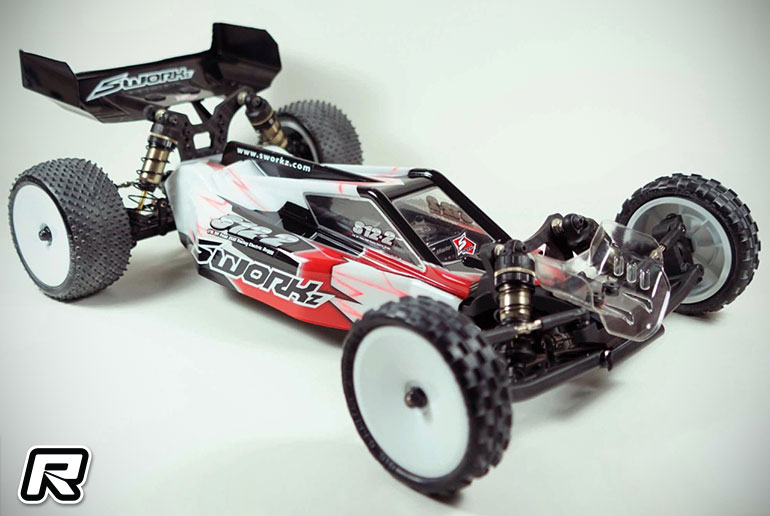

Sworkz S12-2C EVO 1:10 2WD Buggy

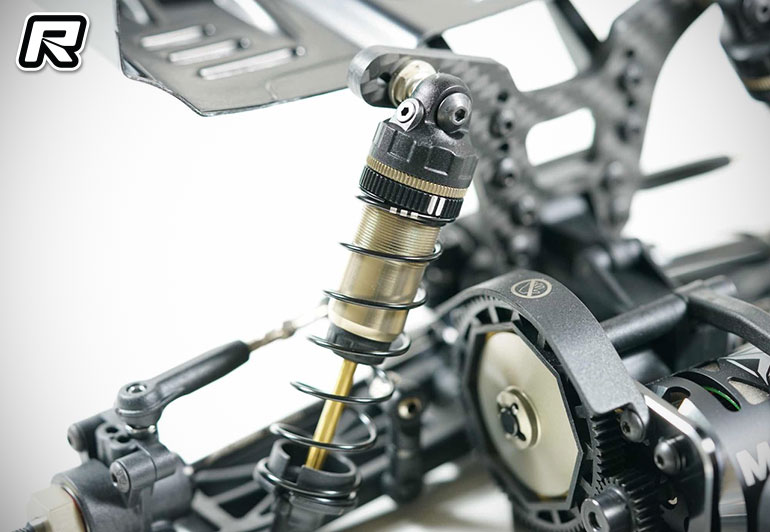

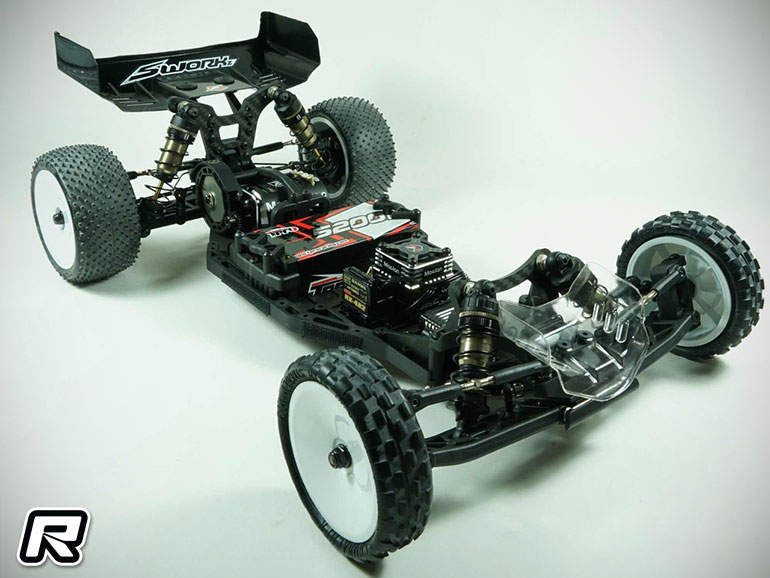

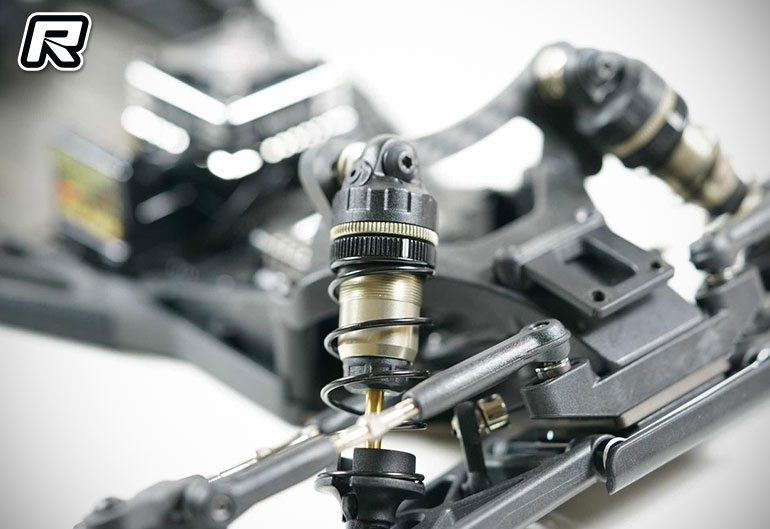

Sworkz has released their new Carpet Edition S12-2C EVO 1:10 2WD Buggy.  An evolution from their successful S12-2C platform, the new geometry of the car provides optimised corner speeds and easy handling on carpet and very high grip tracks.  The S12-2C EVO features a new carpet version gear box system on a T7075 hard anodised and lightened aluminium chassis.  It has a layout that allows up to 6 different battery positions. The flex of the chassis can be changed by adjusting the sideguards.  The EVO comes with Sworkz brand new designed 1:10 Pro-Shock System (Short version).  The shocks come with new Emulsion Precision Plastic Shock Caps, Shock Pistons with Seal Parts. The kit comes standard with a 4mm carbon carpet version front shock tower and newly designed front C-Hubs. The Teflon coated shock shafts provides smooth shock reactions.  Black Line springs which are newly designed with rotation fixed spring holders comes standard in the kit.

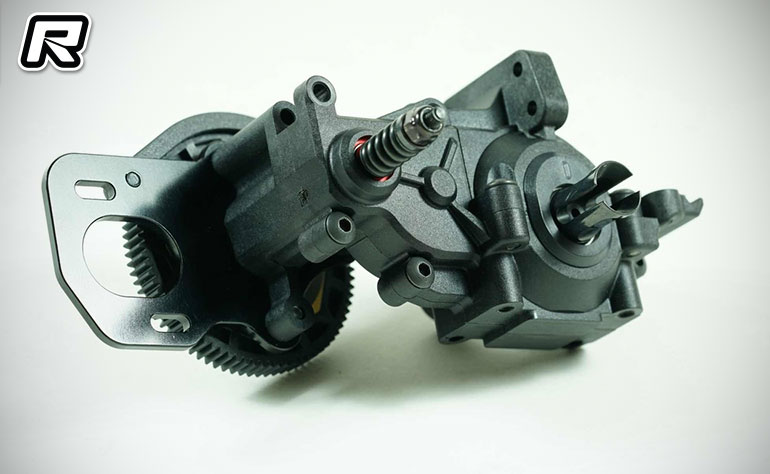

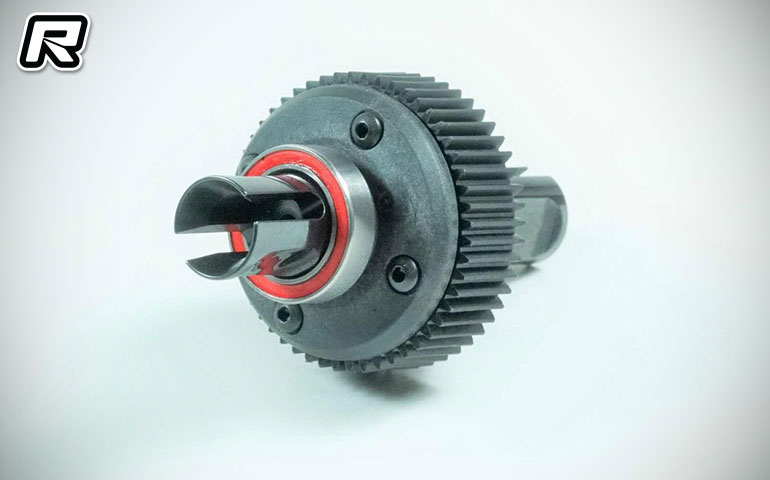

A brand new 5.5mm linkage ball stud system are included in the S12-2C EVO kit. Adjustable Ackermann plate and Carbon steering plates are included too. It has new angled lower arms that provide a lower Shock position which leads to a lower centre of gravity.  The kit is equipped with a quick release gear differential system, which can be mounted in 3 different positions.  The rear lower arms are angled and the rear shock tower (carpet version) has got different height positions.  The weight of the gearbox is optimised to a perfect balance between size and strength.

The rear shock tower (carpet version) of the S12-2C EVO is made of carbon.  The wing mount holder’s height and angle can be adjusted.  The rear width of the S12-2C EVO can be changed with the new Synthesis Rear Hub System and rear CVD modularity.  The EVO has a completely new rear sway bar holder system.  The 2-Pad Slipper of the EVO comes with hard anodised plates, high temperature resistant slipper pads and a spur gear protection with a engraved SWORKz logo.

S12-2C EVO Chassis Features

· T7075 hard anodised & lightened aluminium chassis

· Adjustable flex system with various sideguards

· 6 different battery positions

· 4mm Carbon shock tower

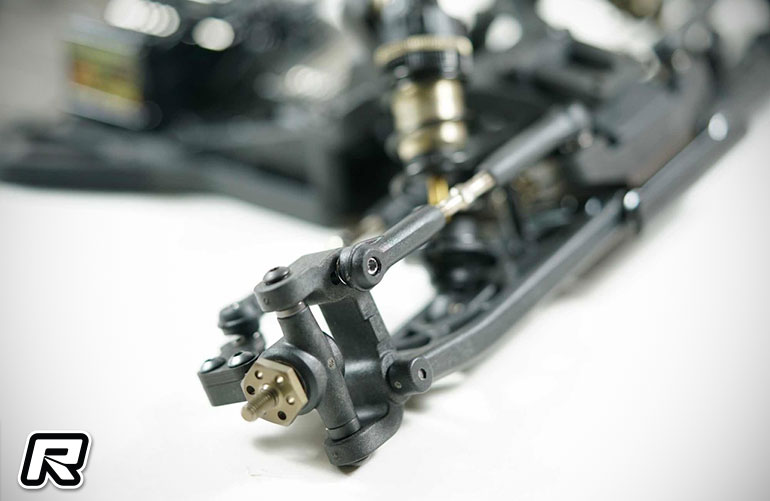

· New C-Hub geometry

· Changeable Ackerman plate

· Carbon steering knuckle plates

· Front sway bar system

· Super light anodised front wheel axles

· Front wing mount with 65mm front wing

· Front aluminum toe in plate

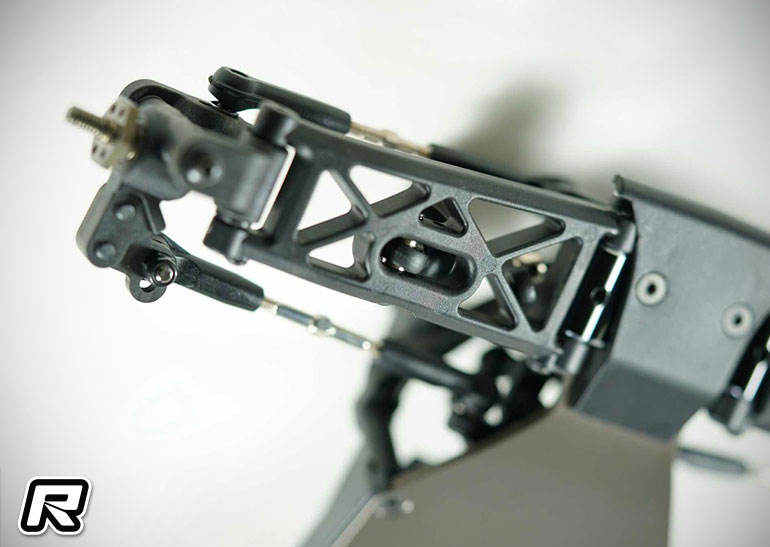

· Front lower arms in angled design

· Easy adjustable Ackerman plate

· The brand 5.5mm linkage ball stud system

· Adjustable differential position

· Quick differential release system

· Lower shock position design with adjustable shock tower position

· Brand new design SWORKz 1:10 Pro Shock System (Shorty version)

· Adjustable rear wing height

· Adjustable rear wing angle

· Rear width adjustable with hubs included length adjustable CVD

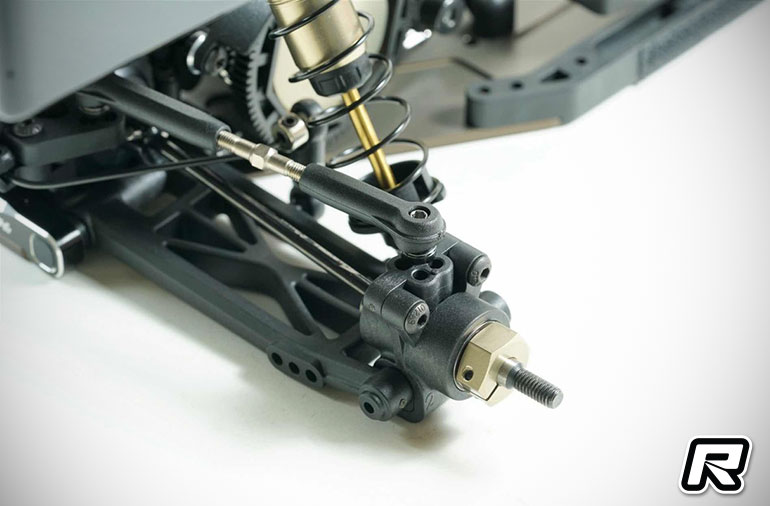

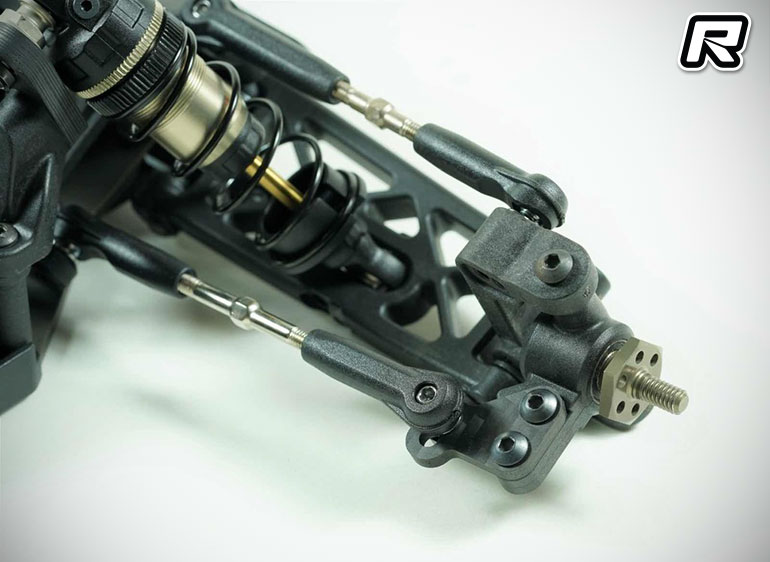

· New Synthesis Rear Hub System

· Fully adjustable square aluminium toe in plate SWORKz engraved

· New designed rear sway bar holder

· Rear wheel hex hard anodised

· Rear Carbon Shock tower

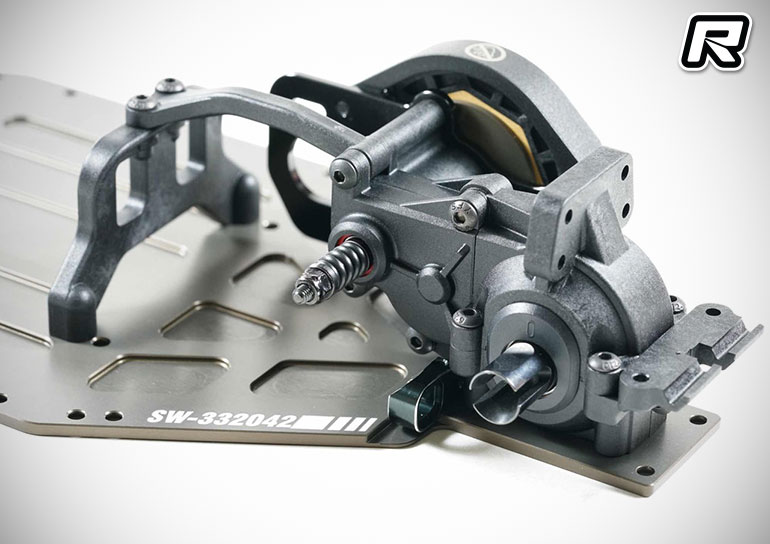

· Super light CAD optimised gearbox

· 2 Pad Slipper System with hard anodised plates

· Slipper Anti-Clock rotation adjustment

· High temperature resistant slipper pads

· Spur gear protection with laser Logo

· Precision plastic emulsion shock cap system

· Unique designed shock stud screws

· Hard anodised stock studs

· Black line shock spring

· Rotation protected spring holder

· Teflon hard coated shock shaft

· Hard coated shock body

· 6 Ball bearings servo system

· Quick release electronic plate

· Battery pad included

· Balanced motor position

· Body shell with optimised aerodynamic design

Source: MW RC Cars [mwrccars.at]
