November 15, 2023

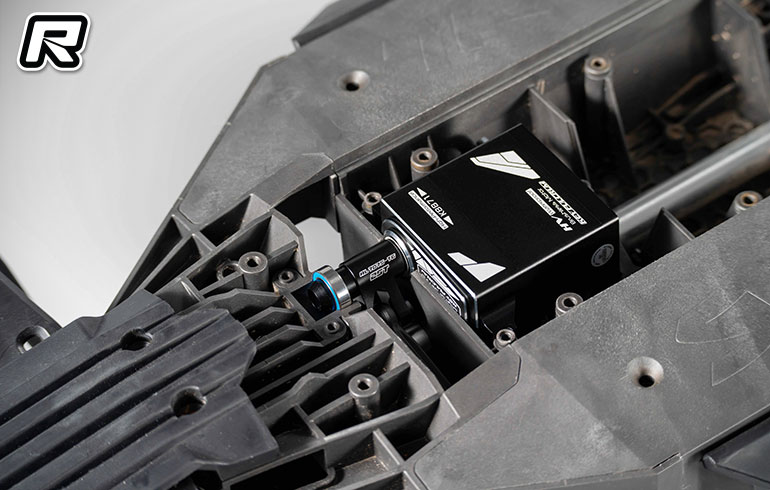

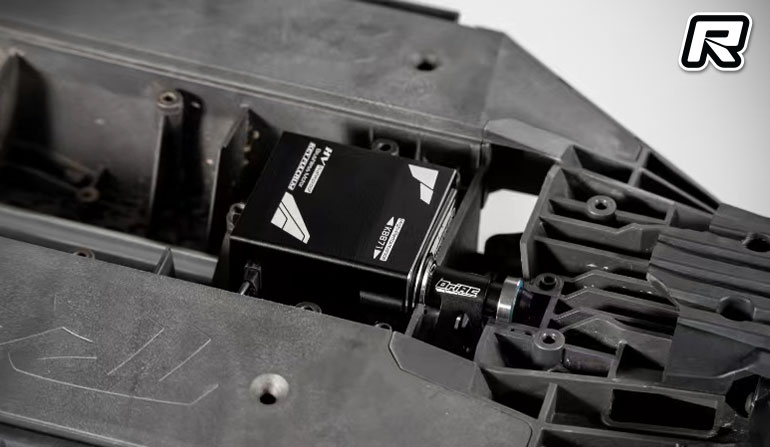

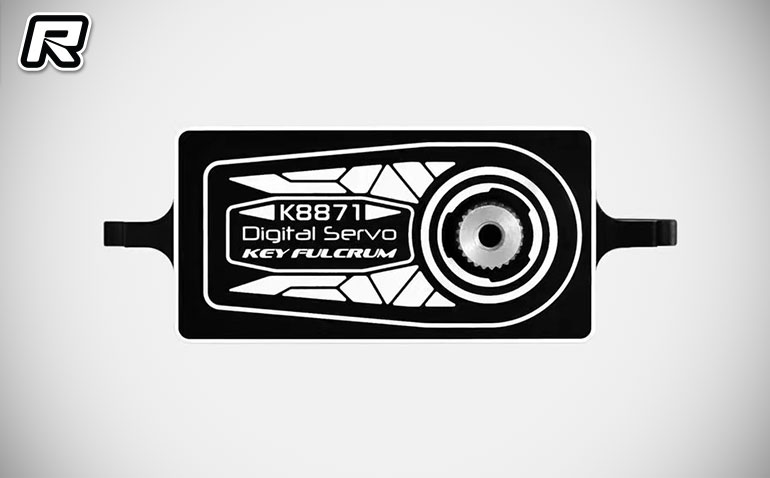

KeyFulcrum X-Maxx, XRT & Maxx Steering Servo

KeyFulcrum has released a new high-pressure brushless digital magnetic waterproof steering servo with an all-metal casing specifically designed for use in the Traxxas X-Maxx, XRT & Maxx trucks.  An innovative imported waterproof, high-temperature resistant, high-torque sensible brushless controllable drive motor is used.  Under the same working structure, it can generate powerful high torque and control current with autonomous programs to achieve excellent matching efficiency.  The magnetic potentiometer is water-resistant and has no internal contact and no wear during operation. Accordingly the starting and stopping positioning accuracy and return accuracy of the steering gear are accurate during left and right moving, which can work together with the autonomous procedures, and highlight the optimal efficiency.  Pioneering high-strength integrated steel teeth and laser-welded steel teeth.  The teeth do not come loose, durable, smooth, and can improve the meshing accuracy of the gear set system.  This makes the empty position controllable.  Innovative 4-bearing design is adopted, so that the entire gear set has only 1 pin and is made of high-strength 3.2mm alloy steel to improve its yield strength.  The pin hole in the shell is inlaid with a steel sleeve to enhance wear resistance and prolong the service cycle.

Source: KeyFulcrum []
