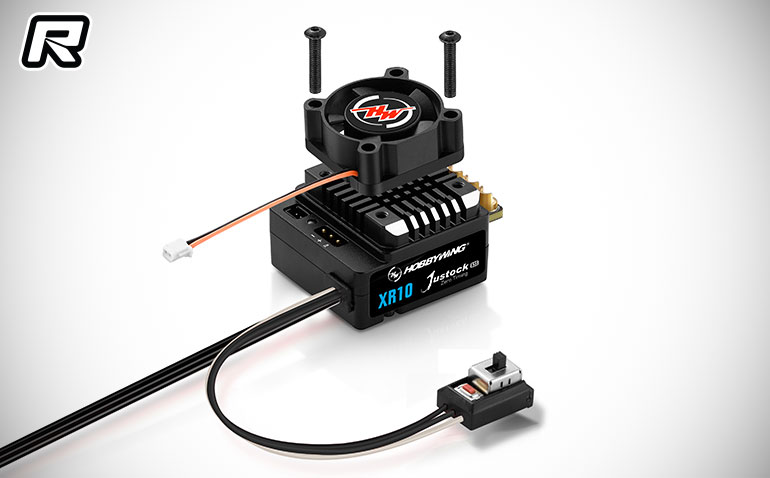

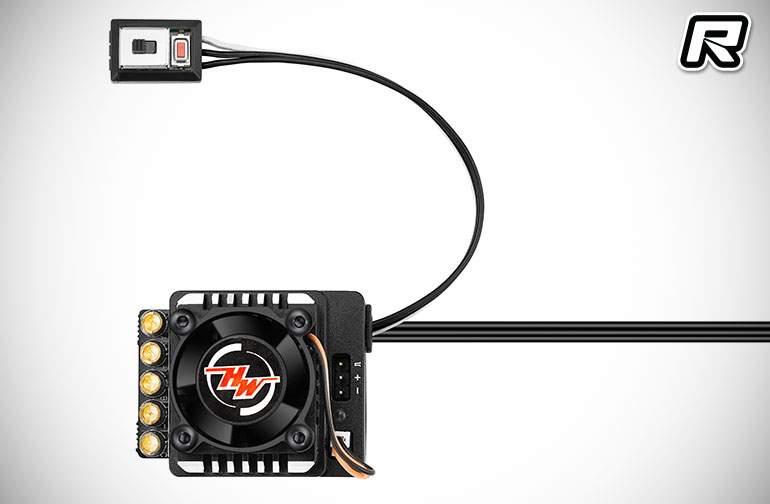

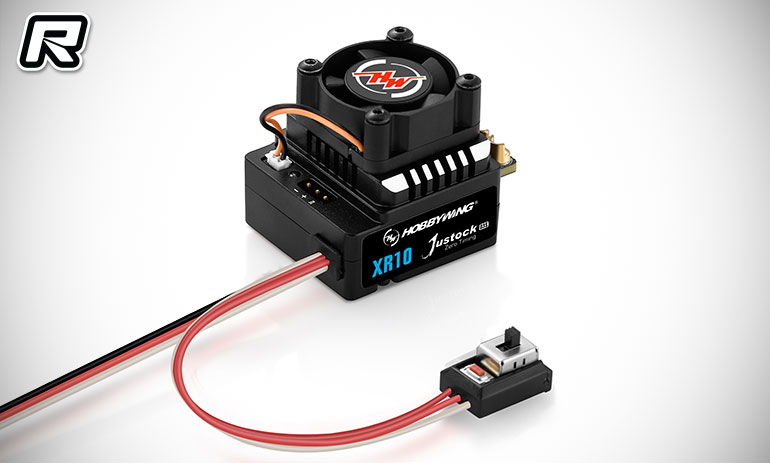

Hobbywing XeRun XR10 Justock G3S

Hobbywing has just released its latest ‘Blinky’ speed controller, the XeRun XR10 Justock G3S.  The ESC offers more precise control and powerful performance and is suitable for 1:10 onroad and offroad zero-timing competitions.  The parameters have also been optimised, the number of which has been increased to 15 and are more in more in line with competition needs.  With wireless connection for data recording and analysis once connected to the OTA Bluetooth module you can connect to the ESC through the HW Link mobile app and turn on the real-time data recording function allowing you to view data such as throttle, voltage, current, temperature, speed, etc. in real time.  Another feature of the XR10 Justock G3S is Freewheeling.  When turned on the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off and it has better controllability around the corners.  With Multi RPM limit, you can select one of 79 RPM Limits (10000-88000RPM).  It can be programmed through the LCD programming box or OTA module making it is simple and convenient to meet  the RPM limit requirements of various competitions in the world.  Another feature is the Fan intelligent start and stop function.  When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.  This function of  the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

XeRun XR10 Justock G3S Specification

Size – 40.9X33.9X32.1mm

Weigh – 75.4g(w/Wires)

Cont./Peak Current – 60A/380A

Input Voltage – 2S Lipo

BEC Output – 6V/7.4V @4A

Input Wires – Black-14AWG-200mm*1 Red-14AWG-200mm*1

Output Wires – Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1

Fan

Size – 25*25*10mm

Output Wires – 5-7.4V

Input Connectors – BEC

Source: Hobbywing [hobbywing.com]
