February 23, 2024

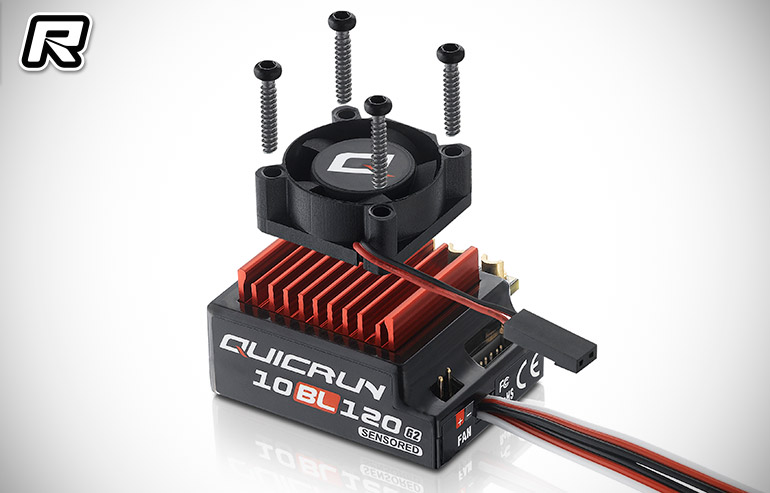

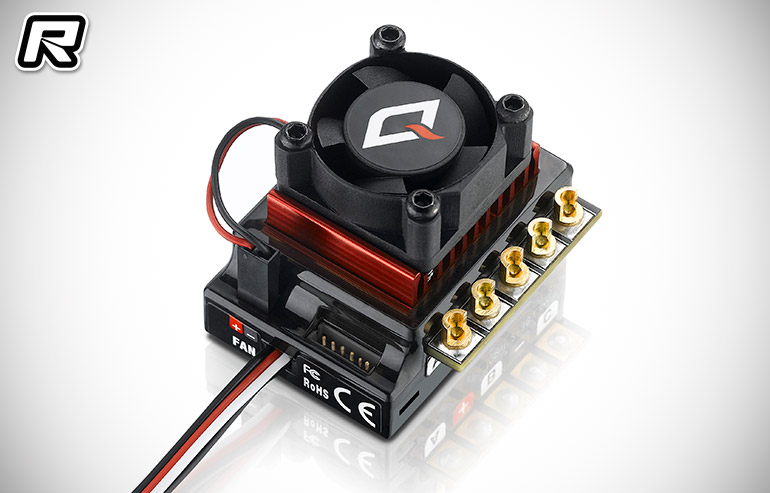

Hobbywing QuicRun 10BL120 G2 ESC

In a busy week of releases from Hobbywing, they have announced their new QuicRun 10BL120 G2 sensored and brushless ESC for 1:10 Touring Cars/Buggies/Drift Cars.  Simple to operate, with a wide range of protection, the cost-effective new 10BL120 G2 takes the outstanding quality and durability of proven Hobbywing platforms and makes it even easier to use and setup.  The BEC’s continuous output current has been upgraded from 3A to 4A, and the output voltage is now 6V/7.4V adjustable.  The 10BL120 G2 features adjustable electronic timing with up to 32 degrees of electronic timing available.

QuicRun 10BL120 G2 Specification

Cont./Peak Current – 120A/760A
Input Voltage – 2-3S Lipo
BEC Output – Switch Mode 6V/7.4V @4A
Input Wires – Black-12AWG-200MMmm*1 / Red–12AWG-200MMmm*1
Output Connectors – Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1
Size – 43*36.8*32.3mm
Weight – 101.5g (Included wires&connectors)

Size – 25x25x10mm
Output Wires – 5-8.4V
Input Connectors – Powered by BEC

Source: Hobbywing [hobbywing.com]
