FlySky GMR-C3 mirco receiver

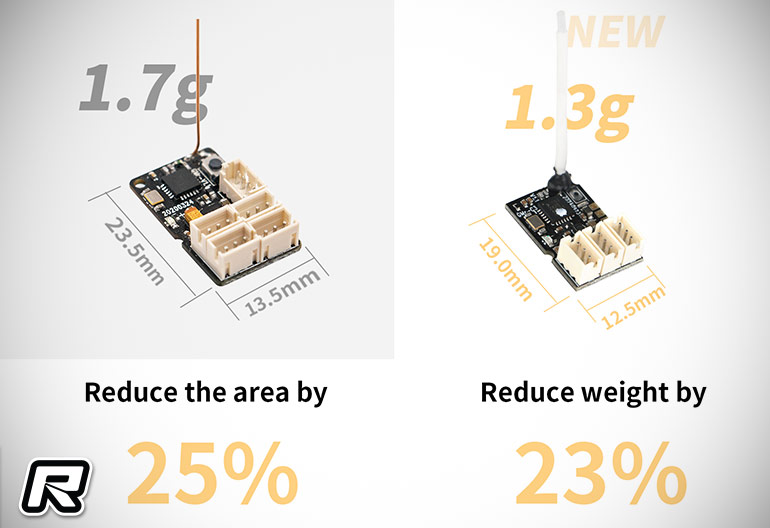

New from radio manufacturer FlySky comes their new micro size GMR-C3 receiver intended for use in Mini Z, 1:28 Pan car, Micro and Mini RC cars.  Offer the previous GMR receiver the C3 is 25% smaller in size and 23% lighter coming in at just 1.3 grams.  Compliant with AFHDS 3 (third generation automatic frequency hopping digital system), the 3-channel micro receiver features a a single antenna and bi-directional. It supports external gyroscope connection and parameters adjustment on transmitter.  The receiver is compatible with FkySky’s Noble range of transmitters.

GMR-C3 Specification

PWM Channel: 3

Wireless Frequency: 2.4GHz ISM

Wireless Protocol: AFHDS 3

Range: >50m (In an open, unobstructed area)

Channel resolution: 4,096 levels

Antenna Type: single antenna (Silicone wire antenna)

Power: 3.5-9V

RSSI: Supported

Data port: PWM

Temperature range: -15 ℃ — + 60 ℃

Humidity range: 20% -95%

Online Update: Yes

Dimensions: 19.0 x 12.5 x 7.0 mm

Weight: 1.3g

Certification: CE，SRRC，FCC ID: 2A2UNGMR-C300

Source: Flysky [flysky-cn.com]
