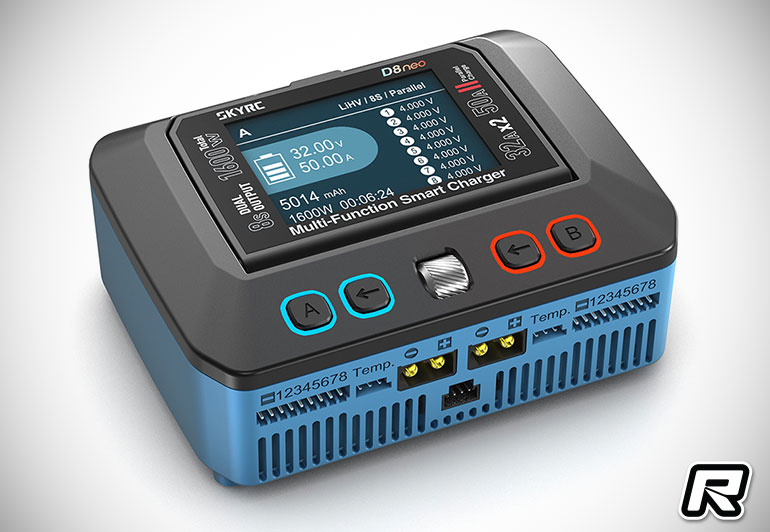

SkyRC D8neo Multi-function Smart Charger

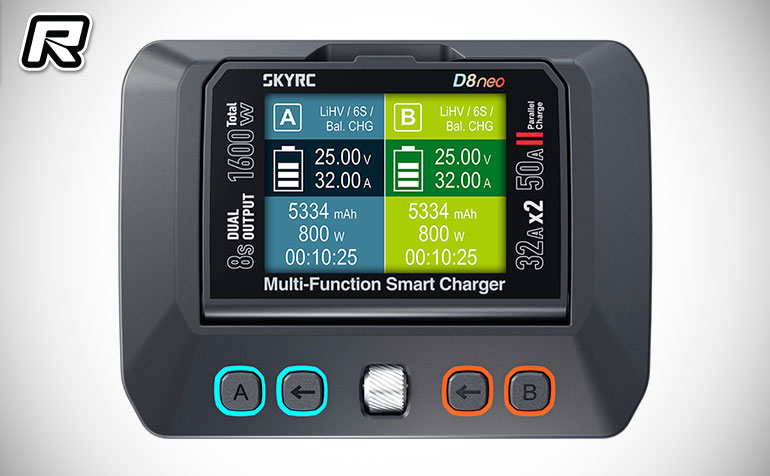

Battery charger manufacturer SkyRC has introduced the new D8neo multi-function smart charger, combining high power performance with a compact footprint.  Delivering up to 1600W total output, the dual-channel design supports up to 32A per port and 50A in parallel mode for demanding charging applications.  A foldable display improves usability by keeping key information visible from different angles, while a dual-fan cooling system ensures stable operation under load.  When paired with the optional BD380+ discharger, Channel A enables up to 40A discharge for advanced battery conditioning and analysis, supported by SkyRC’s Charger Master software for real-time data monitoring.  In addition, the integrated 100W PD output allows the D8neo to function as a versatile charging hub for everyday devices, making it a well-rounded solution for both trackside and workshop use.

Size and Weight

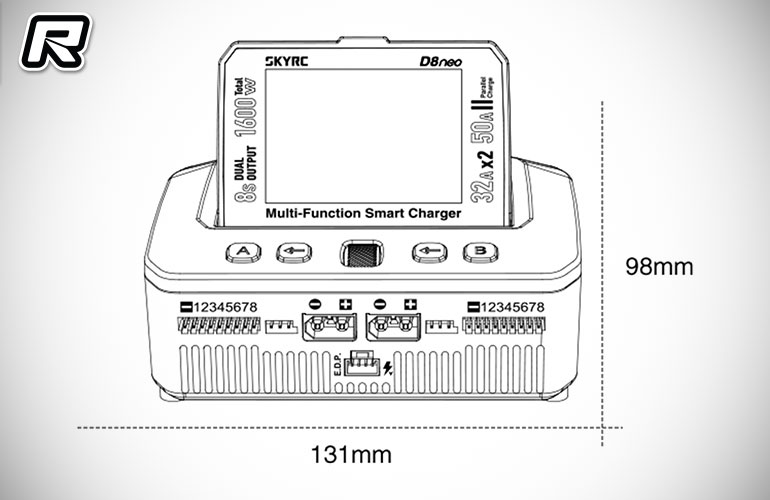

Case Size: 131x98x46.5mm
Weight: 530g

Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240×320 Pixel
Number of Colors: 262K

Power
Input：9-49V

Charge Power:
Single Channel: 1100W
Multi-channels: 1600W in total (A+B+DC Power+Type-C)

Discharge Power:
Main Port: 45W
Balance Port: 20W Max (LiPo/8s)
Reverse Discharge Power: 1100W
Battery Types/Cells:
LiPo/LiFe/Li-ion/LiHV: 1-8S
NiMH/NiCd: 1-20S
Pb: 3S/6S/12S

Charge and Discharge
Charge Current
LiPo/LiFe/Li-ion/LiHV(2~8S): 0.1A ~ 32.0A
LiPo/LiFe/Li-ion/LiHV(1S) / NiMH/NiCd: 0.1A ~ 10.0A
Pb: 0.1 ~ 15.0A

Parallel charge
LiPo/LiFe/Li-ion/LiHV(2~8S): 33.0A ~ 50.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1A ~ 4.0A

External discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.5A~40A

Balance current
LiPo/LiFe/Li-ion/LiHV: Max. 1.9A

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)

Source: SkyRC [skyrc.com]
