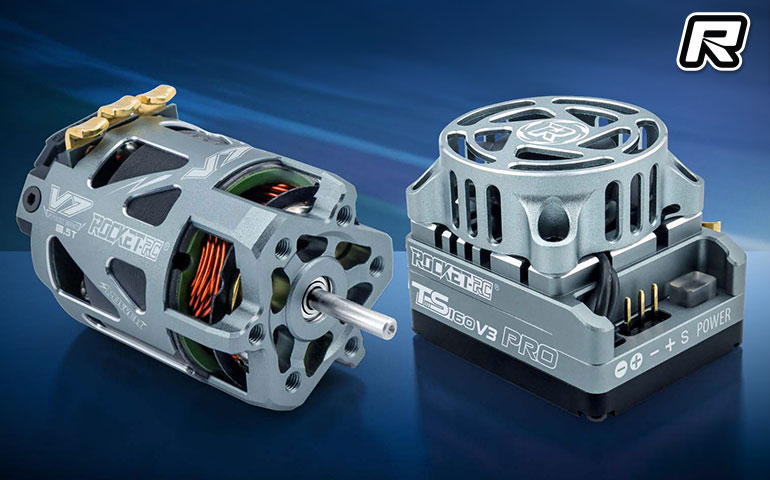

Rocket-RC 540 V7 Motor | TS160 V3 ESC 1:10 Competition Combo

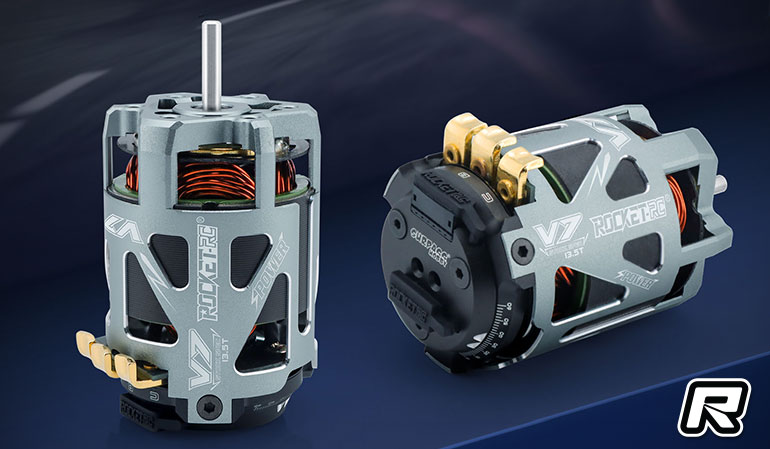

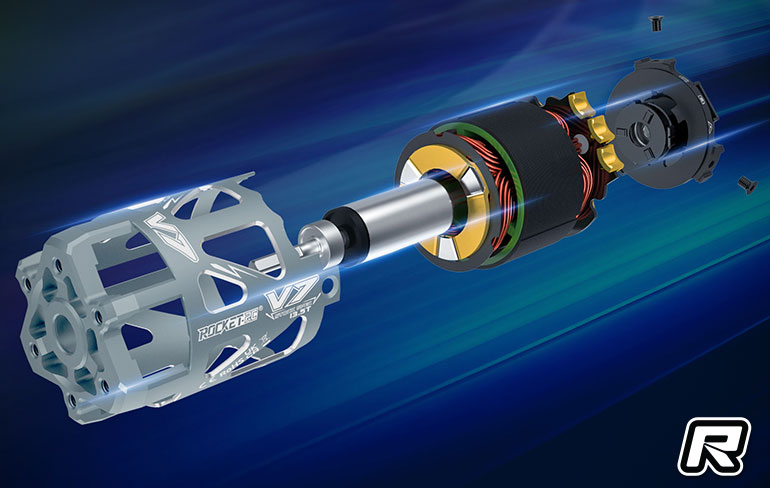

New from Surpass Hobby comes this Rocket-RC 1:10 Competition Electrics Combo that features their latest 540 V7 Motor and TS160 V3 ESC. The new-generation 540 V7 motor is 10 grams (5%) lighter than the 540 V6-S and 540 V6-M models, with a rotational speed increase of 10%–30%, delivering enhanced performance while being more lightweight. Featuring a modular design for easy assembly and disassembly, ensuring efficient and hassle-free maintenance and replacement, the V7 has a completely new exterior design crafted from premium aviation-grade aluminium alloy. Using high precision CNC machining technology it has a 54% heat dissipation surface area for efficient cooling and enhanced performance efficiency. Premium ultra-thin 0.35mm silicon steel stator sheets and 220°C heat-resistant enamelled copper wires ensure precise temperature control and delivers sustained, powerful performance. Equipped with imported NSK high-end precision bearings, ensuring smooth, quiet, and durable operation. High-precision dynamic balancing with a heat-resistant and explosion-proof structure at 200°C, ensuring smooth operation with low vibration, high efficiency, and low energy consumption; delivering sustained and stable power performance. The 540 V7 is compliant with international competition certifications including BRCA, ROAR, EFRA, and IFMAR.

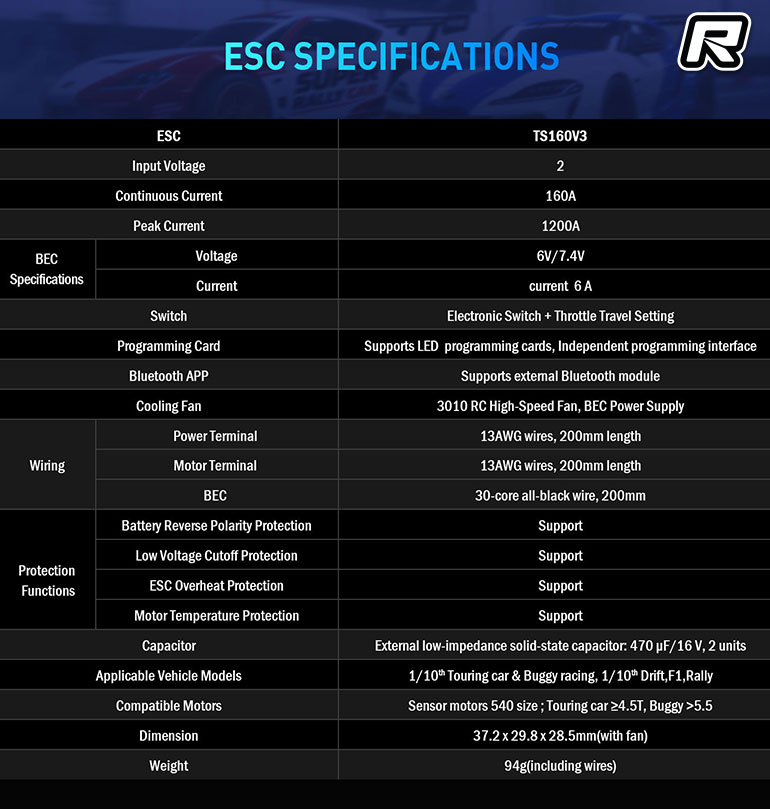

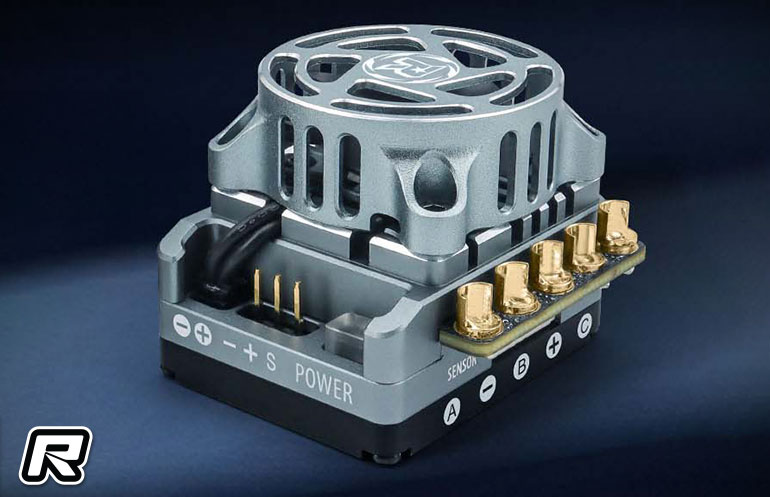

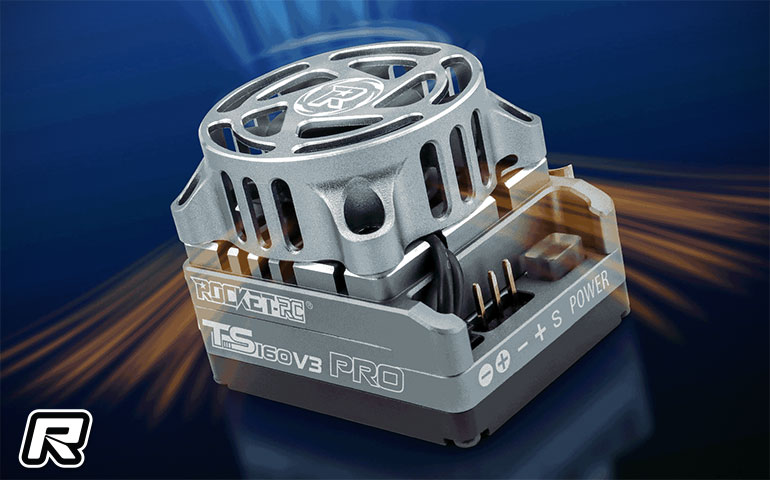

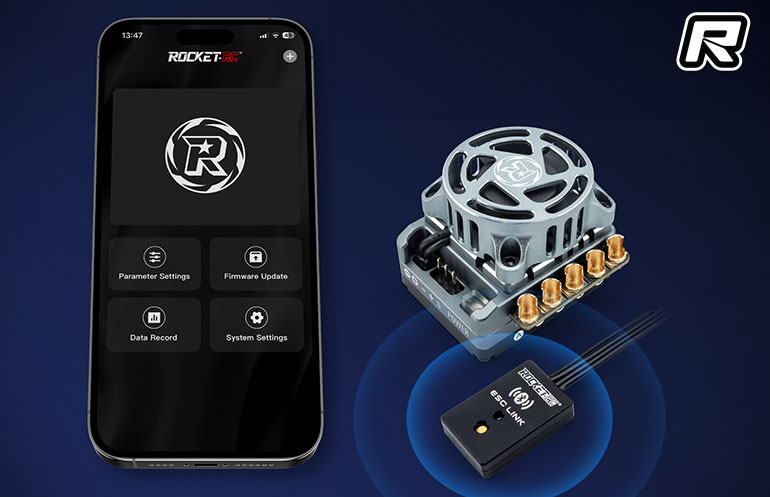

Surpass Hobby describe the TS160 V3 Speed Controller as a mid-to-high-end competitive-grade bluetooth-enabled unit that balances user-friendly operation for beginners with advanced customisation options, suitable for drivers at all levels. With a continuous current of 160 amp and update 1200 burst, the ESC has a fully metal aluminium casing with a 3010 high-speed cooling fan, it delivers precise temperature control and sustained full-power performance for high-intensity competitions. An integrated electronic switch, eliminates external switch wiring simplifying circuit routing for a more streamlined vehicle layout. With adjustable BEC voltage regulation module with dual-voltage switching (6V/7.4V) and stable 6A output, it is compatible with various high-voltage servos. The ESC has four-layer protection against battery reverse connection, low voltage, motor failure, and electronic temperature regulation issues, with real-time comprehensive monitoring for worry-free racing performance throughout the entire process. Equipped with a 32-bit processor, it delivers fast computation, high precision, and support for feature upgrades, enabling outstanding performance on the field. With 0–30° throttle softening and 0–80% travel customisation, this delivers smooth acceleration with precise, lag-free handling. Equipped with an external OTA Bluetooth module (ESC LINK) this connects to the mobile app for wireless parameter adjustment, firmware upgrades, data recording, and analysis. A dedicated programming interface supporting LED display programming cards, offers visual parameter debugging with simple and intuitive operation.
Source: Surpass [surpass-hobby.com]
