SkyRC PSU650 650W Smart Multi-Port DC Power Hub

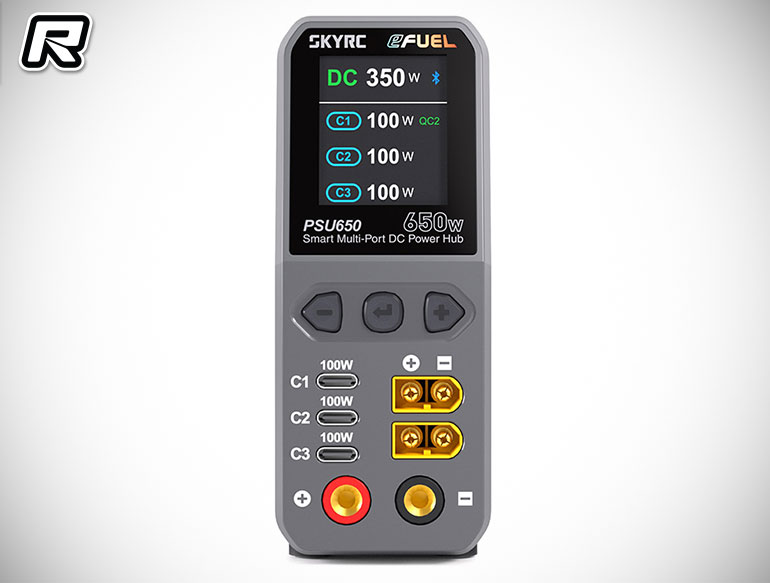

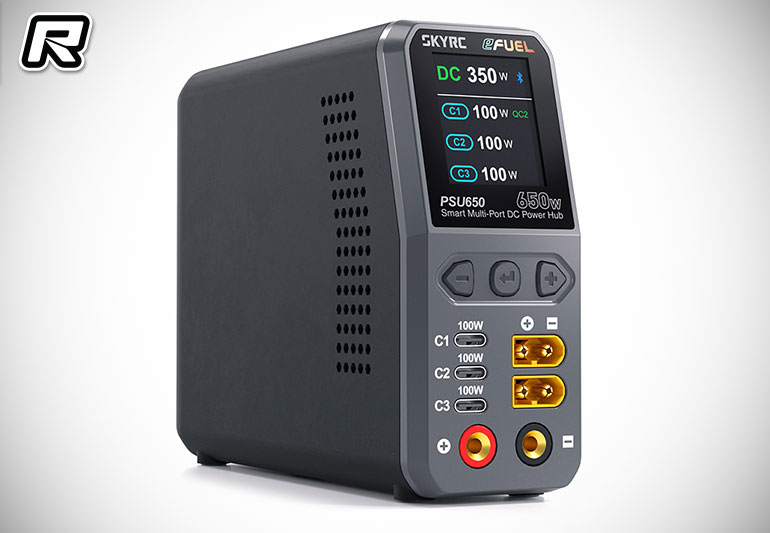

SkyRC is launching the new eFUEL PSU650, a 650W Smart Multi-Port DC Power Hub designed to bring RC and everyday desktop power into one compact unit. The PSU650 offers an adjustable 1–24V DC output with up to 30A of current, delivering up to 650W with 220V AC input or up to 500W with 110V AC input, while dual native XT60 outputs and 4mm banana terminals provide convenient connections for RC chargers, test equipment and other electronics. Three USB-C ports each support up to 100W output with PD 3.0, PPS and QC fast-charging protocols, while Smart Power Allocation lets users reserve 200–650W for the DC output and automatically distributes the remaining available power across the USB-C ports. The PSU650 also features GaN power technology, a real-time Power Dashboard, Bluetooth app control with presets and OTA firmware updates, selectable Quiet and Performance cooling modes, and a Desk Clock Mode. Combining RC-focused connectivity with versatile USB-C and adjustable DC power, the PSU650 is designed as an all-in-one power hub for the pit, workshop and desktop.
Specifications
Size and Weight

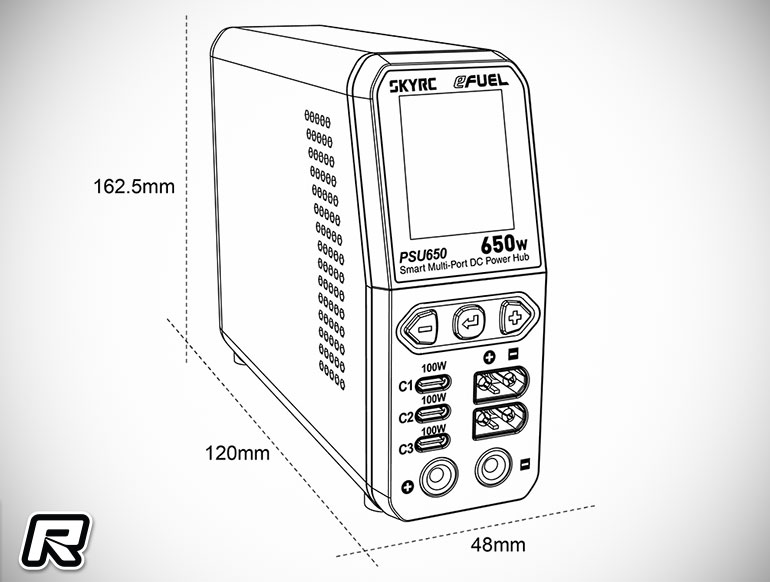

Dimensions: 162.5 x 120 x 48mm
Weight: Approx. 0.95kgPower

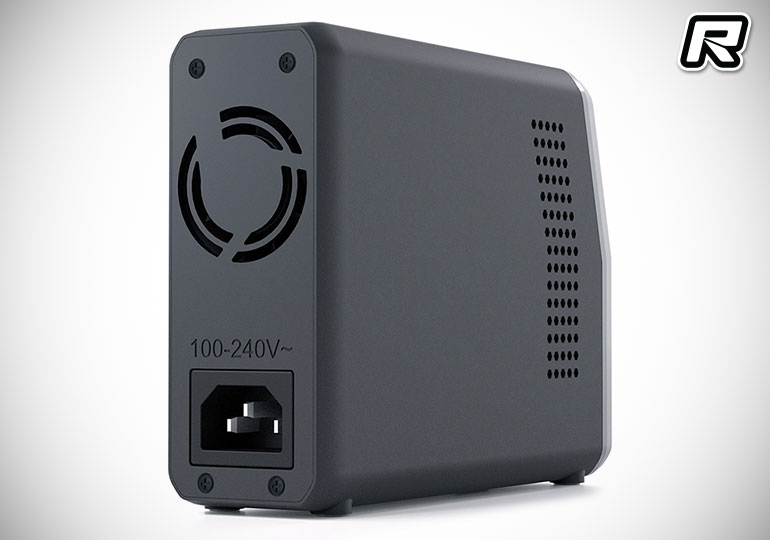

Input Voltage: 100V~240V/AC（50Hz/60Hz）DC Output Power:
AC110V Input:
200–500W (±10%)
AC220V Input:
200–650W (±10%)USB C1/C2/C3 Output Power: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max.)
DC Output Voltage Range: 1V~24V (Default: 12V)
DC Output Current Range: 0.1A~30A (Default: 20A)
DC Voltage Accuracy: ±2%
DC Current Accuracy: ±2%
DC OVP Setting Range: 2.0V~25V (Default: OFF)
DC OCP Setting Range: 2.0A~32A (Default: OFF)
