SkyRC S65neo AC Smart Balance Charger

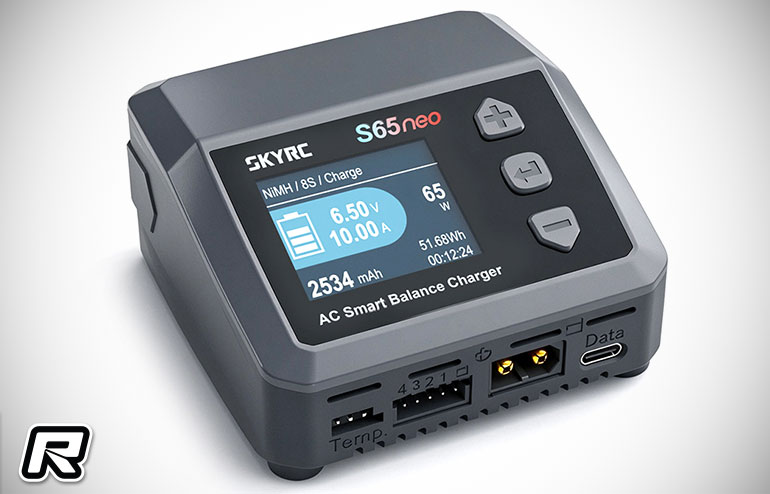

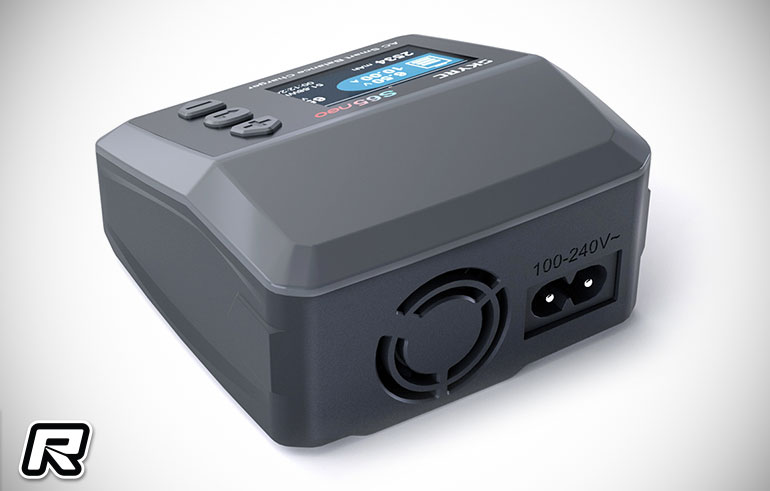

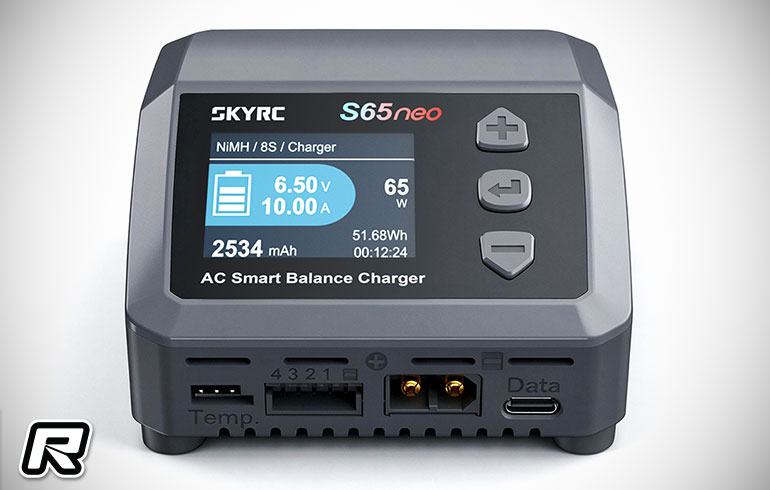

SkyRC has expanded its offering of RC chargers with the introduction of the new S65neo, a compact AC smart charger.  Measuring just 84 × 84 × 45mm, despite its palm-sized footprint, the S65neo delivers up to 65W of charging power and a maximum 10A charge current, with balance charging for a wide range of RC batteries.  The main output and balance port work together to provide up to 10W of discharge power, while built-in internal resistance measurement offers a quick way to check battery condition.  Beyond charging, S65neo can also serve as an adjustable digital DC power supply, offering 6–17V output and 0.5–9A current.  A high-efficiency synchronous rectification design, intelligent temperature-controlled cooling fan and multilingual interface round out the package, making S65neo a versatile charging solution for the workbench, pit area or travel bag.

Specifications
Size and Weight

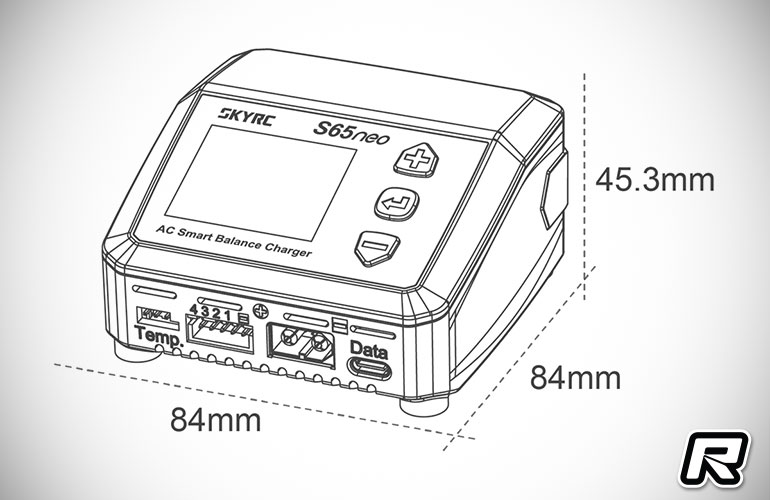

Dimensions: 84 x 84 x 45.3mm
Weight: 200g

Power
AC Input：100V-240V~ 50/60Hz
Charging Power: 65W
Battery
LiPo/LiFe/Li-ion/LiHV: 2-4S
NiMH/NiCd: 6-8S
Pb: 3S/6S

Charge & Discharge
Charge Current
NiMH/NiCd/LiHV/LiPo/Li-ion/LiFe: 0.1A~1A(±0.3A), 1.1A~10A(±10%)
Pb: 0.8A~1A(±0.3A), 1.1A~10A(±10%)

Discharge current: 0.1A ~ 2A
Balance Current: LiHV/LiPo/Li-ion/LiFe MAX 500mA

Operation
LiHV/LiPo/Li-ion/LiFe: Balance CHG / Charge / Storage / Discharge
NiMH/NiCd: Charge / Re-Peak / CYCLE_C_D / CYCLE_D_C / Discharge
Pb: Normal/ AGM Charge/ Cold Charge/ Discharge

Source: SkyRC [skyrc.com]
