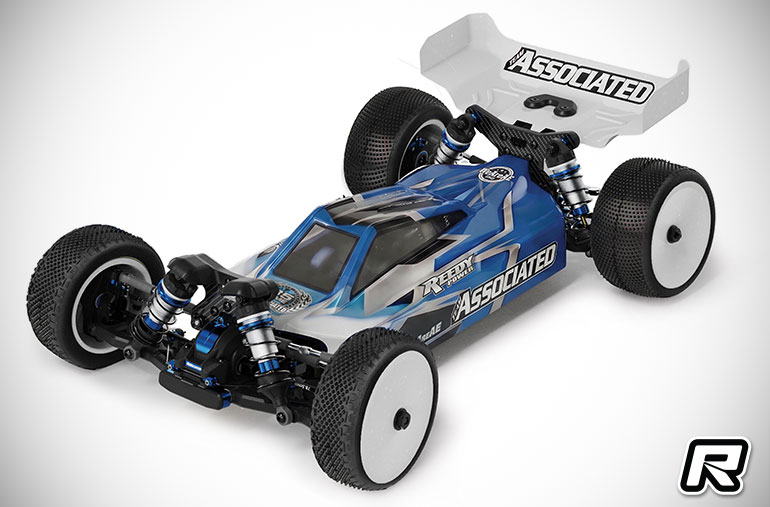

Team Associated RC10B84.1

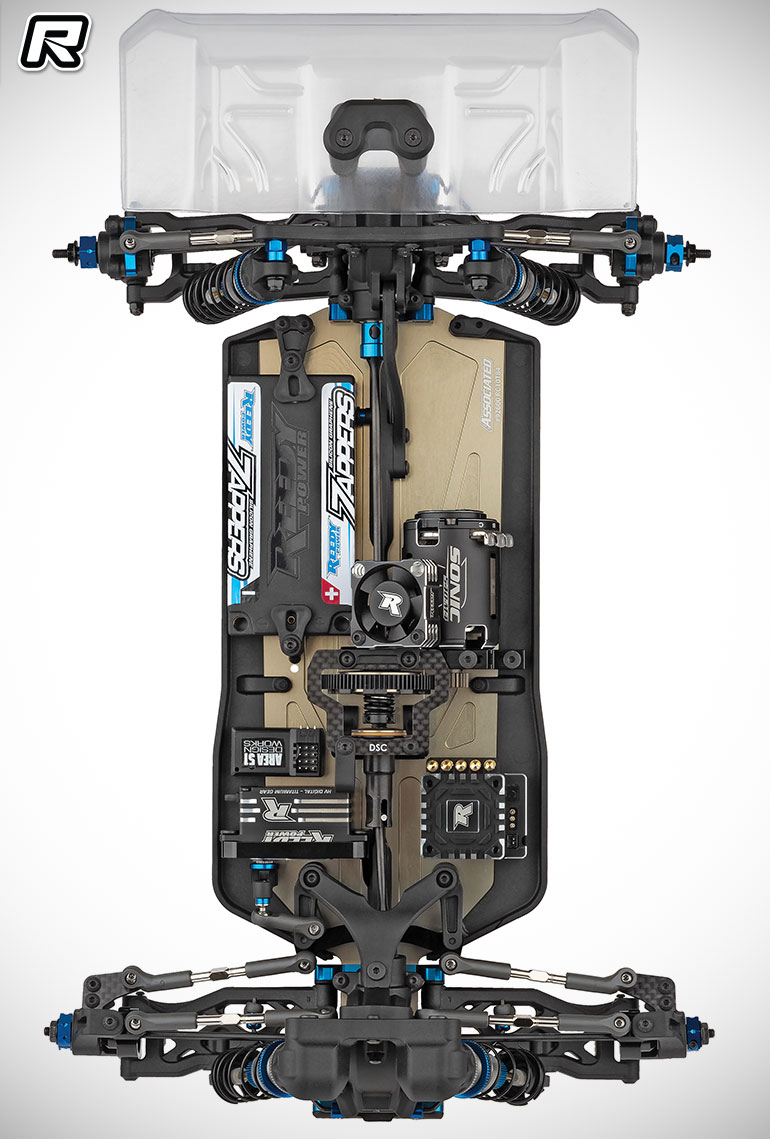

Taking a break from retro kit releases, Team Associated has announced its latest version of its top flight 4WD race buggy with the RC10B84.1. Highlights of the B84.1 include a Wide Tongue Chassis for improved durability and V2 Steering Posts and Bellcranks to reduce vertical movement in the steering rack. Also up front you get Molded Front Shock Tower Cover for 73mm arm Shock Tower. Along the sides of the buggy, the kit gets V2 Side Rails to account for the Wide Tongue Chassis and a 102mm Center CVA Dog Bone is included in the kit. Upper and lower chassis bracing front and rear allow fine tuning of chassis flex characteristics, giving you the flexibility to adapt to each track you race on.
RC10B84.1 Features

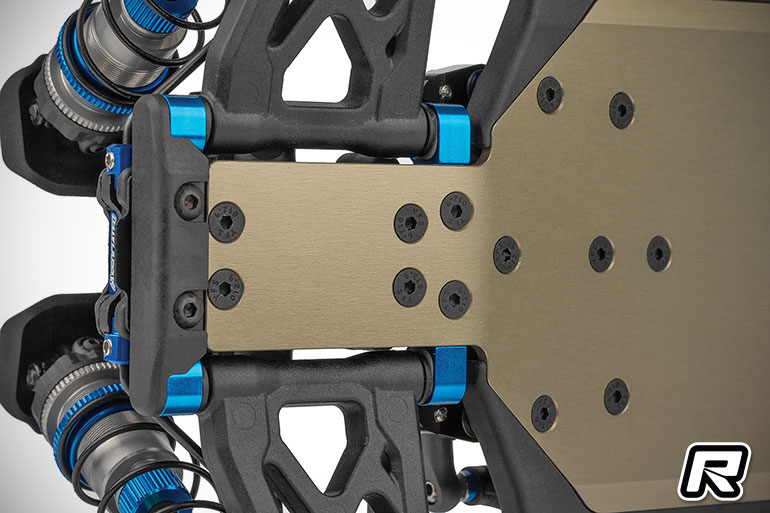

• Wide Tongue Chassis for Improved Durability
• V2 Side Rails to Account for Wide Tongue Chassis
• Wide A and B Mounts
• 73mm Gull Wing Front Arm Suspension

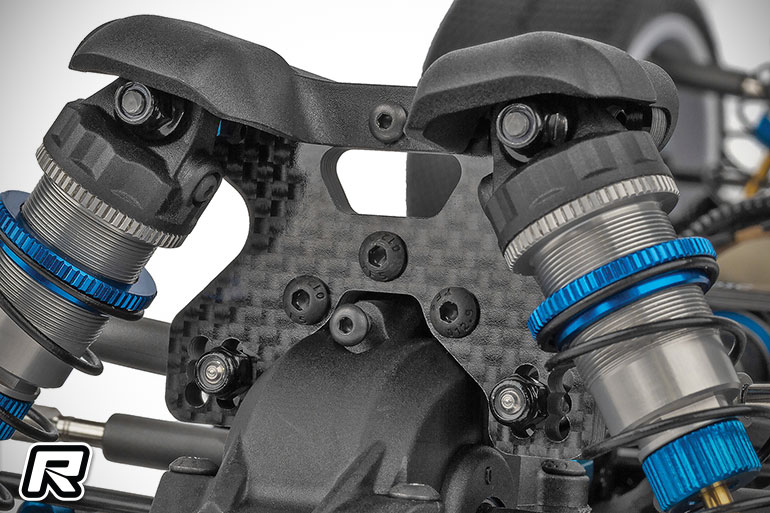

• Carbon Fibre Front Shock Tower for 73mm arm Geometry
• Molded Front Shock Tower Cover for 73mm arm Shock Tower
• V2 Steering Posts and Bellcranks to Reduce Vertical Movement in the Steering Rack

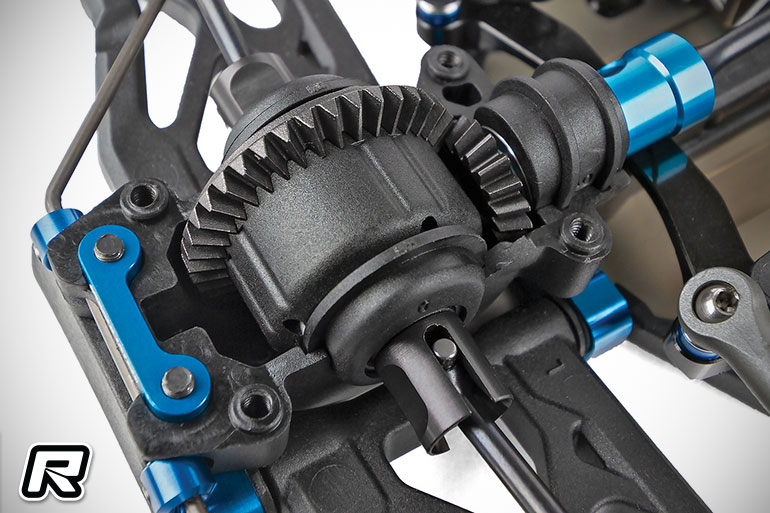

• Long HD Differential Outdrives for the Rear Differential
• 66mm Rear CVA Bones
• New A and D mount 0.7mm shims
• Molded Front Bumper with Optional Bumper That Covers Anti-roll Bar Mounts
• Molded Height-Adjustable Gearboxes Front and Rear with Additional +2 Rear Gearbox for High-Grip Conditions
• Optimised Steering Bellcranks and Rack: improved bumpsteer control at all ride heights

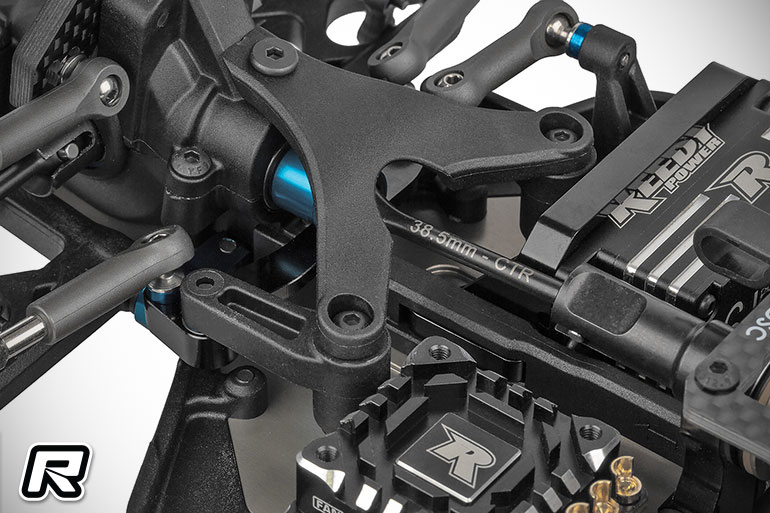

• Chassis Bracing: Fine tune chassis flex characteristics with upper and lower chassis bracing front and rear

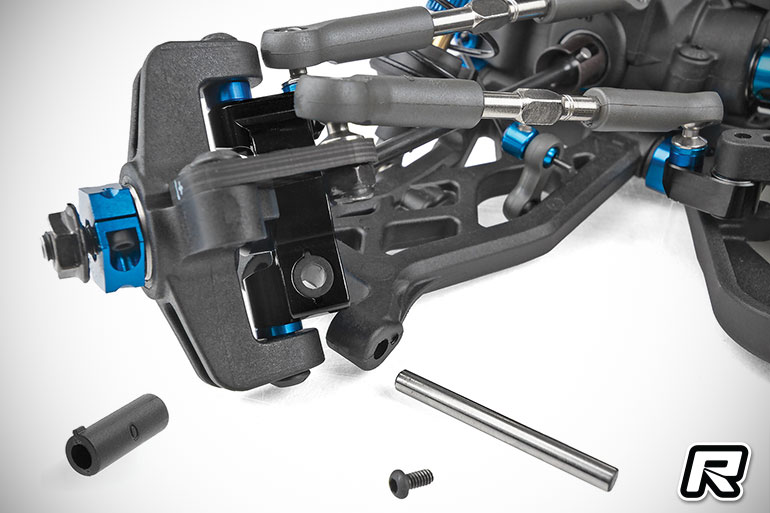

• Standard and HRC (High Roll Center) Rear Hubs Included
• Insert adjustable caster block with 0, +/-1, and +/-2 degree inserts included
• Forward and Back Motor Positions: used for further weight bias adjustment

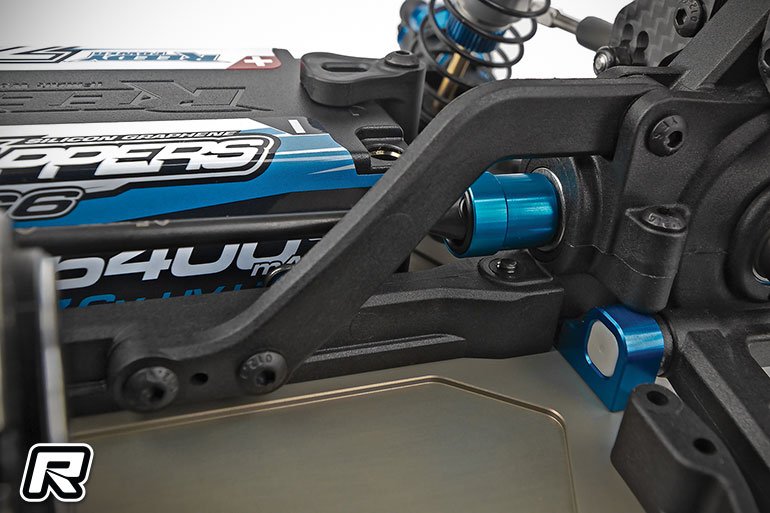

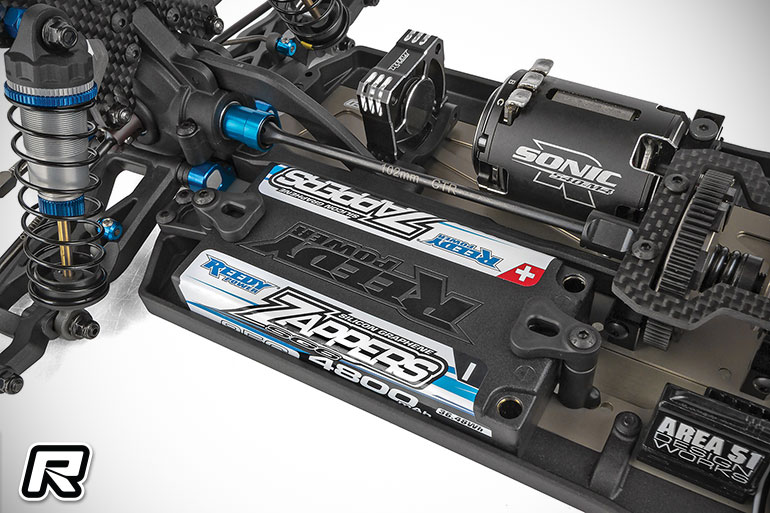

• Highly Adjustable Battery Holder with Thumb Tabs: allows for easy battery removal and fine tuning of weight bias
• 2.5mm Thick Tapered 7075-T6 Aluminium Chassis with 10 Degrees of Kickup and Improved Departure Angle
• Decoupled Slipper Clutch Included

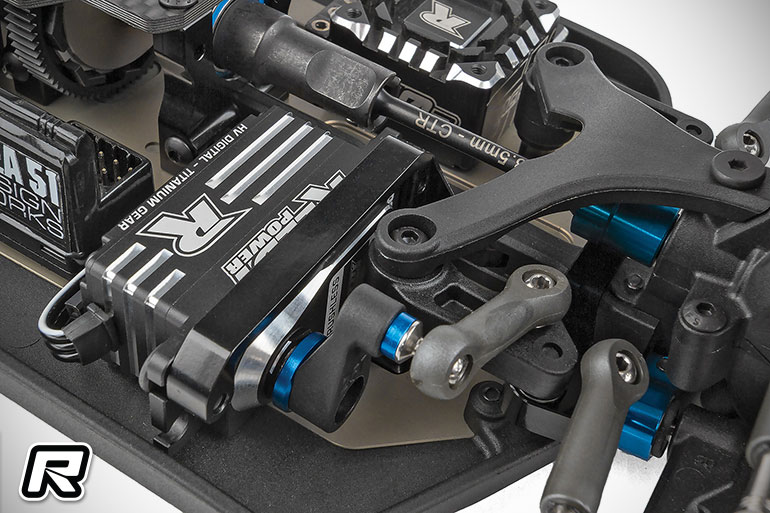

• Aluminium Center-Mounted Servo Mount
• Two heights Included for Rear Wing Mount
• 7-inch Rear Wing
• Low-Profile Body
• 3.5mm Turnbuckles and Ballcups

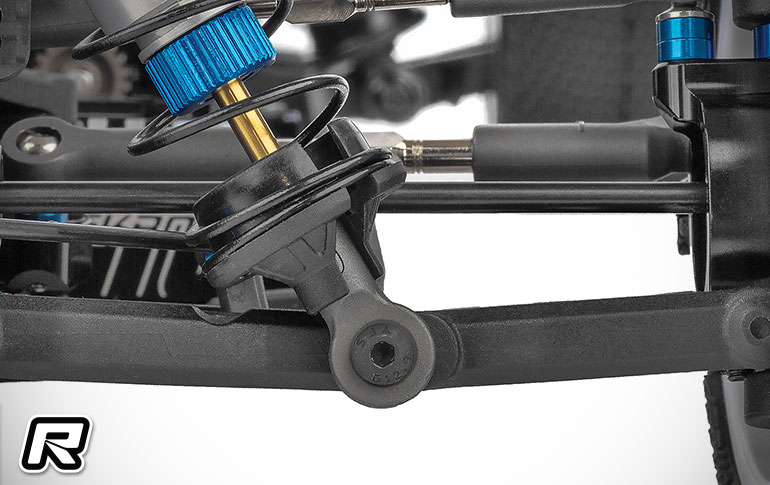

• 13mm Big-Bore Shocks
