March 3, 2009

Associated RC8Te Electric Truggy

Associated RC8Te Electric Truggy

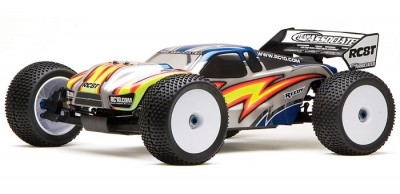

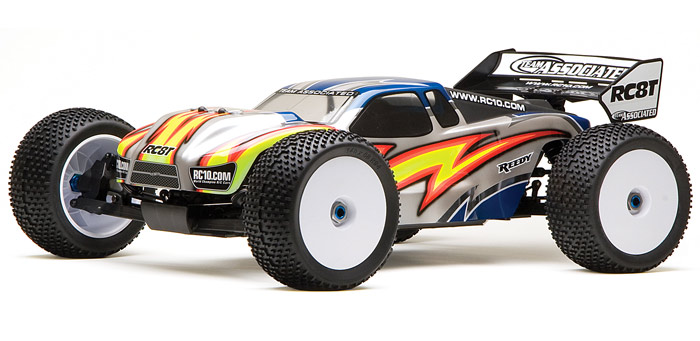

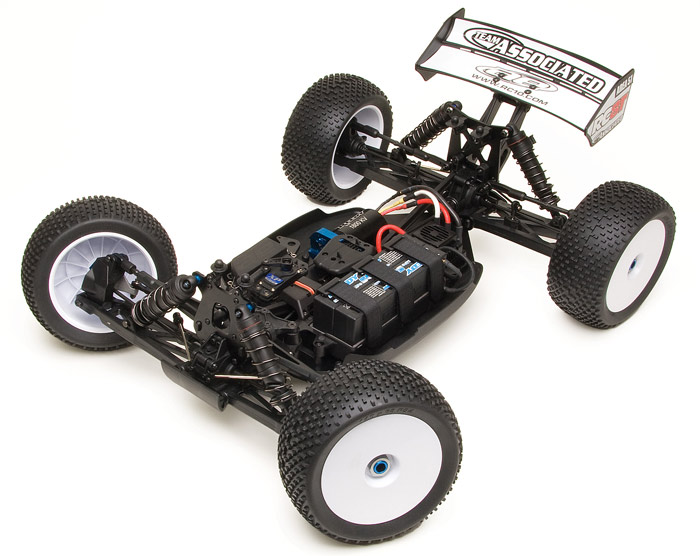

Team Associated have released the RC8Te, a 1/8 scale electric powered competition truggy kit based on the championship-winning RC8T platform. The car’s engineering team has developed a practical design that incorporates the same exceptional strength, durability, cornering capability, jumping ability, and rough track handling that characterize the nitro-powered RC8T. With special features such as a hard-anodized machined chassis, correctly balanced and optimized weight distribution, composite Big Bore shocks featuring 4mm gold shafts, upgraded steering system, and lightweight wheels, every inch of the RC8Te screams high-performance and durability.

Associated RC8Te Electric Truggy

RC8Te Kit Features:

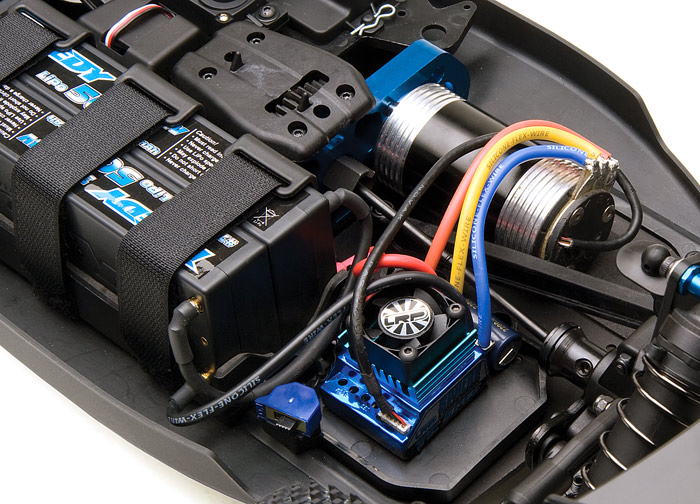

– Molded battery tray supports two ROAR-approved 1:10 scale size 7.4v LiPo battery packs with room for foam pads
– Receiver box, servo, and battery tray remove from car in one piece for easy maintenance and cleaning
– Convenient wire routing keeps critical electronic wires out of drive-train components and simplifies disassembly

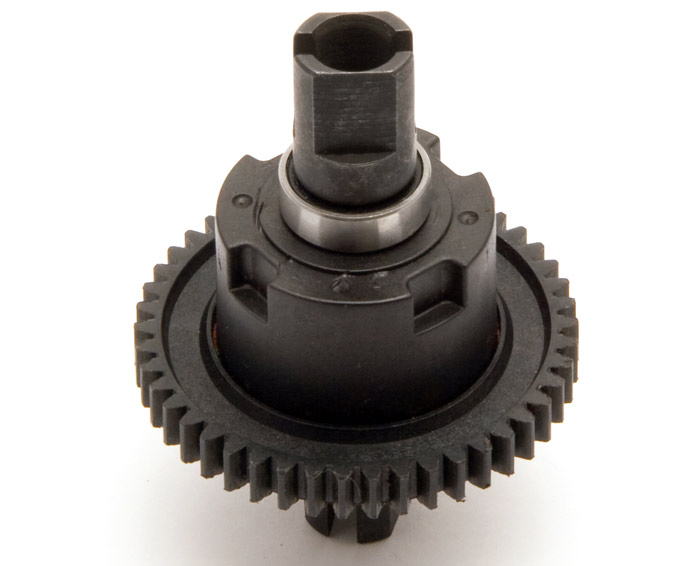

– Includes pinion gear (16T) and molded composite spur gear (50T)
– Rigid one-piece motor mount utilizes standard motor screw mounting pattern
– Large elevated speed control mounting area allows for easy screw mounting of common speed controllers
– Upgraded dual bell-crank steering for more consistent steering and reduced bump-steer

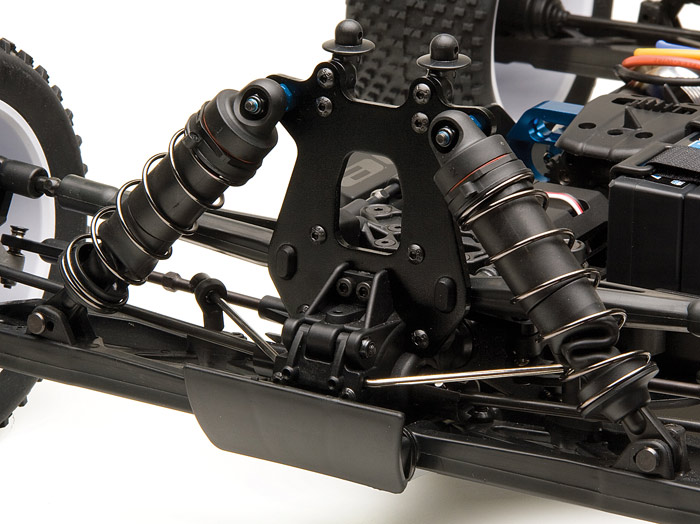

– 16mm Big-Bore molded composite shocks with pre-load clips
– Hard anodized 7075-T6 aluminum chassis
– 3mm aluminum shock towers
– Durable 12mm thick suspension arms
– Rear molded CVA boots to keep dirt and mud out of rear joints
– Alloy steel turnbuckles
– Caster blocks adjust 14, 16, or 18 degrees with molded inserts
– Adjustable suspension pivot bushings for different pivot height options
– 4.30:1 ratio gearboxes
– 3.5mm light CVA drivetrain
– Pre-drilled wing with adjustable angle and location
– Blue aluminum drive hexes
– Blue aluminum nylock wheel nuts
– AE LPR lightweight truggy wheels (#89360)
– Utilizes 3 hook-and-loop straps to secure LiPo batteries into battery tray
– Enclosed receiver box to protects electronic components
– 1.5mm thickness unpainted polycarbonate RC8T body

Associated RC8Te Electric Truggy

Associated RC8Te Electric Truggy

Associated RC8Te Electric Truggy

Associated RC8Te Electric Truggy

Source: Associated [rc10.com]
