November 13, 2017

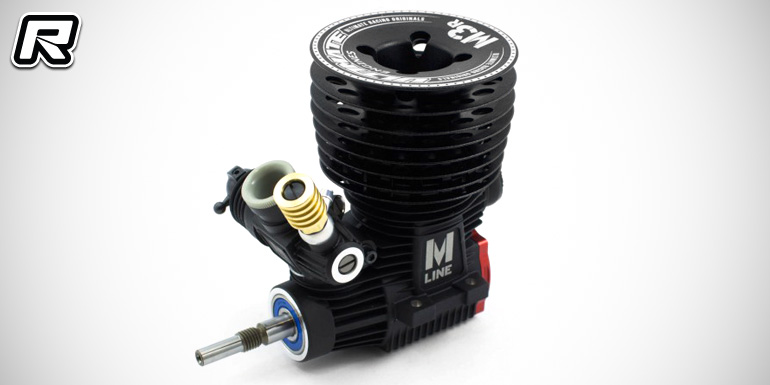

Ultimate Engine M3R 3.5cc nitro off-road engine

Modelix Racing have introduced their new M-3R 3-port 3.5cc nitro off-road engine. Like the previously released M3S, the R version is a 3-port 0.S. based power plant but it features a high-precision and Japan-made rear steel bearing, a balanced crankshaft with tungsten weight and silicone filling and it comes with a 6.5mm venturi insert. The engine is of a long stroke design, it offers high torque and extreme power all combined with low fuel consumption. Other features include a low-profile cooling head designed by Modelix, the carburettor is the same as with the M3S and M3T engines and the backplate is machined from 7075-T6 aluminium with the hard material reducing the conrod/backplate friction.

– Displacement: 3.46 cc
– Power output: 2.75 PS/2.71 hp @ 34.000RPM
– Practical range RPM: 4.000-44.000
– Bore x stroke: 16.27×16.80
– Sleeve: 3 + 1 ports
– Rear ball bearing: steel
– Front ball bearing: steel
– Crankshaft: 14 mm
– Carburretor: Aluminium w/insulator gasket
– Glow plug: P3 Turbo
– Exhaust Position: rear
– Weight: 345g
– Fuel type: 25% nitro

Source: Modelix Racing []
