January 15, 2019

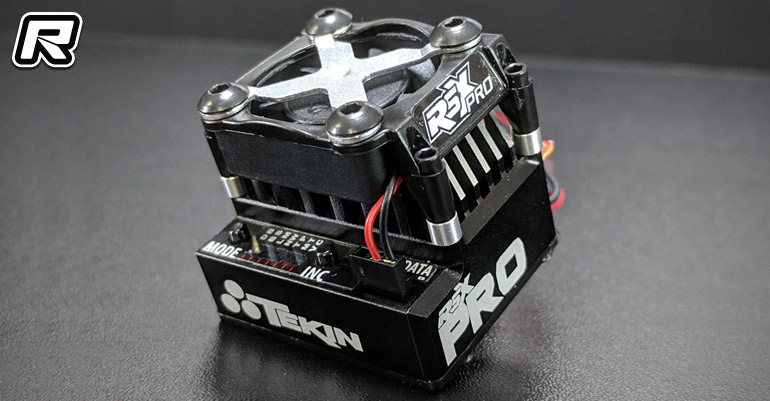

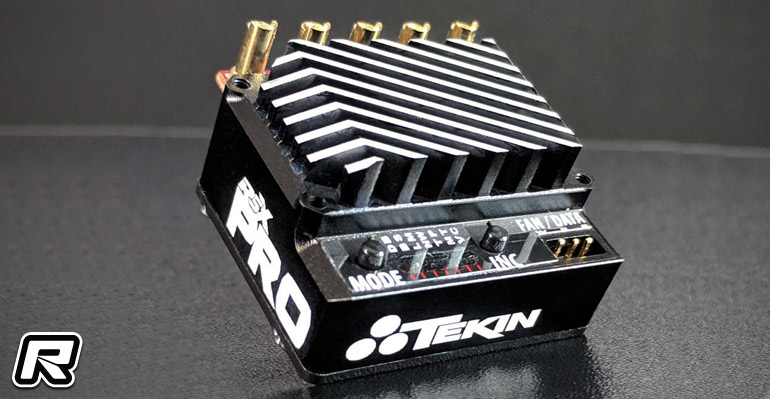

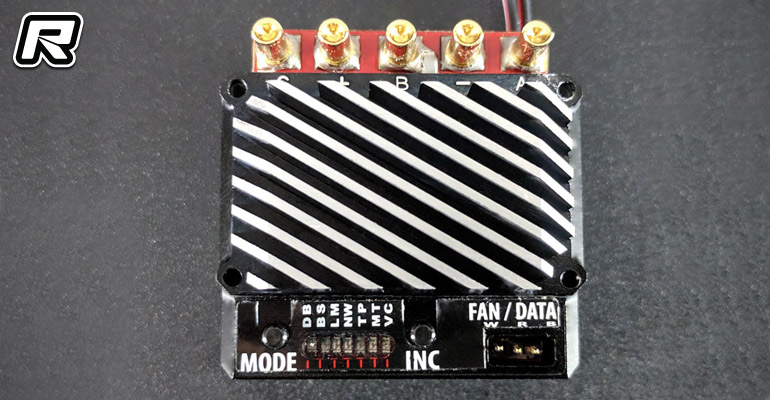

Tekin RSX Pro 1/10th scale speed controller

Coming from Tekin is their new RSX Pro 1/10th scale modified racing brushless speed controller. Using only the best available components and materials, this ESC is performance defined. Bred for 1/10th scale modified competition, the RSX Pro promises maximum power with precise control and reliability. With a highly efficient aluminium heat sink housing and an entire array of adjustable features, drivers have the ability to fine-tune the controller’s massive power for the win. Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data logging, a high voltage HD internal BEC and optional 3rd channel drag brake adjustment come standard as well as access to team driver setups.

– Controls: Forward/Brake/Reverse
– Input voltage: 2S-3S LiPo/4-12S NiMH-NiCD
– Motor limit brushless mode: 2S – 2.5T 2-pole 36mm can, 3S – 10.5T 2-pole 36mm can/3500kV
– Max current: 210A per phase
– HV adjustable BEC: 6.0V/7.4V @5.5A
– Dimensions: 31.2×37.2x21mm
– Weight: 40g

– Billet 6061-T6 aluminium heat sink housing
– New FET package
– New HD easy solder posts
– Optional shroud and high RPM cooling fan
– QuickTune One Touch programming
– Adjustable torque control
– Adjustable throttle and brake frequencies
– HD high voltage programmable BEC
– HotWire programming port
– On-the-fly drag brake adjustment
– Data logging capability
– Sensor checker
– On-board temperature indicator
– ESC self diagnostics with error codes
– Fully proportional forward/brake/reverse
– Brushless and brushed motor drive
– Sensored or sensorless operation
– LiPo safe with custom voltage cutoffs
– Sensor plug for precise commutation
– HDAC: High Density Copper PCB’s
– Ultra-smooth and precise throttle and braking control

Source: Tekin [teamtekin.com]
