April 15, 2019

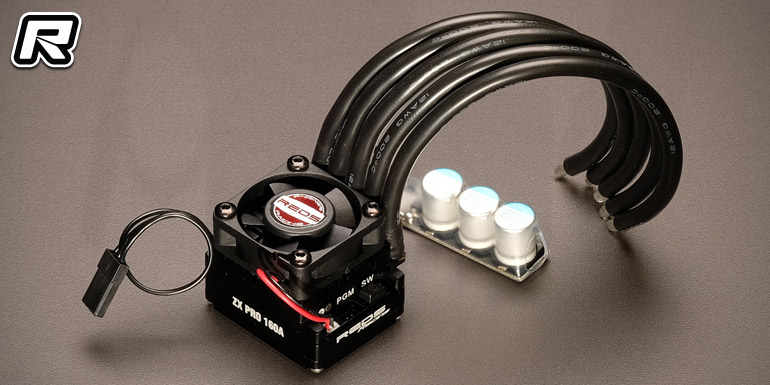

Reds Racing ZX Pro 160A speed controller

Reds Racing from Italy have introduced their all-new ZX Pro 160A 1/10th scale brushes speed controller. The no-compromised ESC was developed with the input of Reds Racing’s international team of factory drivers and it features an updated firmware with new algorithms for throttle and brake control that result in the smoothest possible throttle and very strong brake feeling. At 95g including wires the controller is also lighter than the previous version while offering new programming functions. The speedo features a built-in power switch and programming port, it utilises a switchable 6V/7.4V BEC system as well as a 30mm fan unit. The ZX Pro is available separately, including programming box or Z-Line motors.

– Modes: Stock (Blinking mode) & Modified
– Continuous current: 160 A
– Peak current: 1200 A
– Voltage input: 4-8 sells NiMh/NiCd or 2S LiPo, 2S LiFe
– Supported motors: 540 size 2-pole sensored brushless
– Motor limit: Over 3.5T
– BEC output: 6V-7.4V
– Dimensions: 30.6×38.1×19.6mm (without fan)
– Weight: 95g (with wires)

Source: Reds Racing [reds-racing.com]
