Rebellion RC X20 Crossflex aluminium chassis

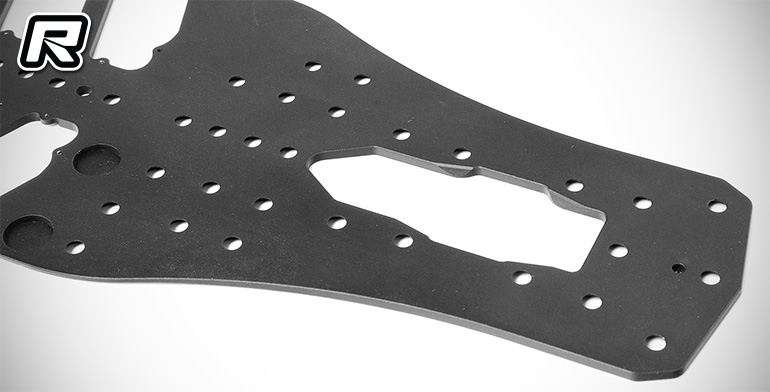

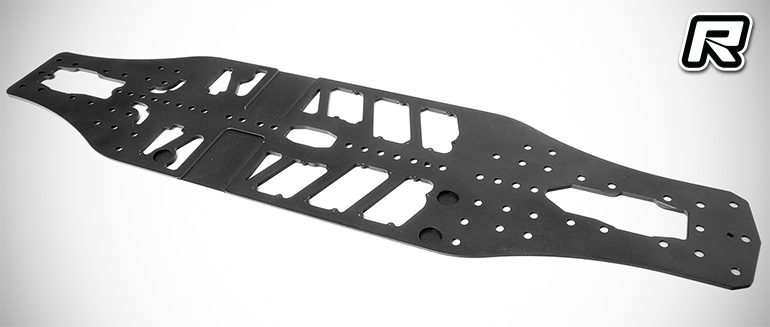

The new Rebellion-RC Crossflex aluminium chassis for the Serpent X20 touring car is here. The chassis was developed for use in medium to high-bite traction conditions with its highly machined design allowing for optimised flex characteristics that can be greatly influenced with the use of up to ten optional brass inserts that not only add weight in the lowest area of the chassis, but they can also be used to change the overall torsional flex characteristics. The sidelines of the chassis have a front to rear 30° chamfered edge for better sliding behaviour when the chassis touches the ground and the cutouts for the Diff/Spool also have chamfered edges to get more space between the rotary parts and the chassis. The chassis is machined from high-quality 7075 T6 aluminium, it comes black anodised for wear and looks, features a laser-engraved Rebellion-RC logo and it weighs in at 84g alone and up to 130g using the optional brass inserts.

Source: RC-Carbonstore [rc-carbonstore.com]
