December 4, 2020

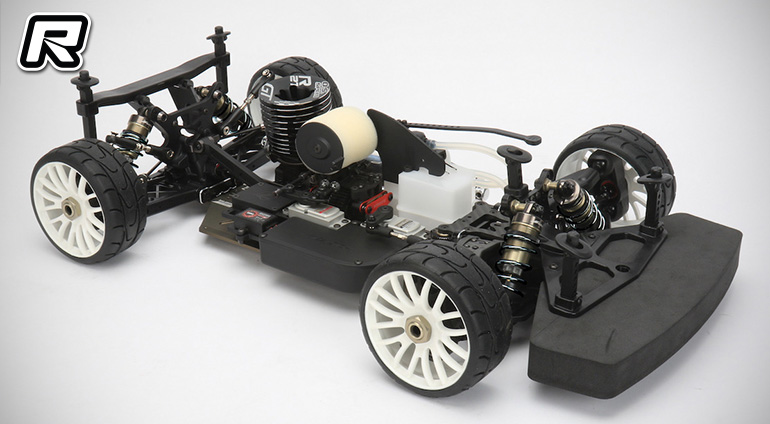

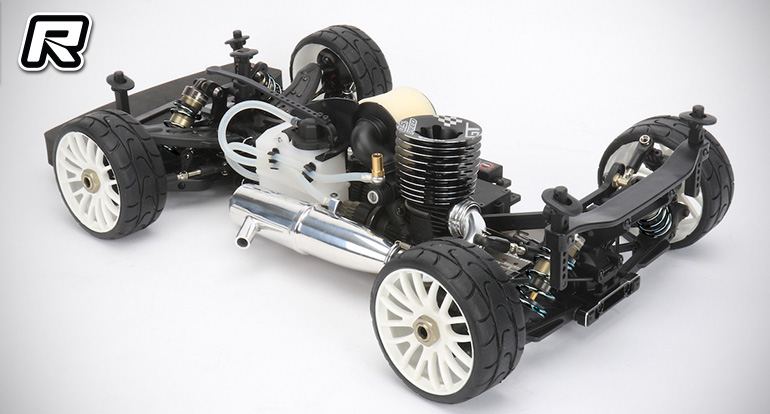

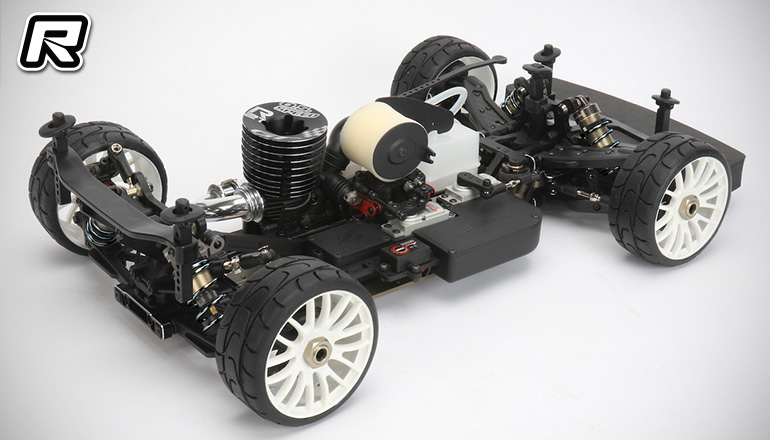

SWorkz S35-GT2 GT Racing chassis

Based on the double World Champion platform SWorkz S35-GT, SWorkz has continued development of their cars and the result is the S35-GT2 and the S35-GT2E. The S35-GT2 is designed as a thoroughbred racing machine for GT Onroad Racing. It has a brand new designed front and rear suspension, while the Ackerman steering geometry was adopted from the 1/8 S35-4 buggy. The 2-speed transmission has also been completely revised on the S35-GT2 platform and significantly improved compared to its predecessor. Sporting a weight-optimised, hard anodised chassis plate made of high-strength T7075 aluminium, the wide layout of the rear axle, developed in numerous tests by their works drivers, is also used on the S35-GT2.

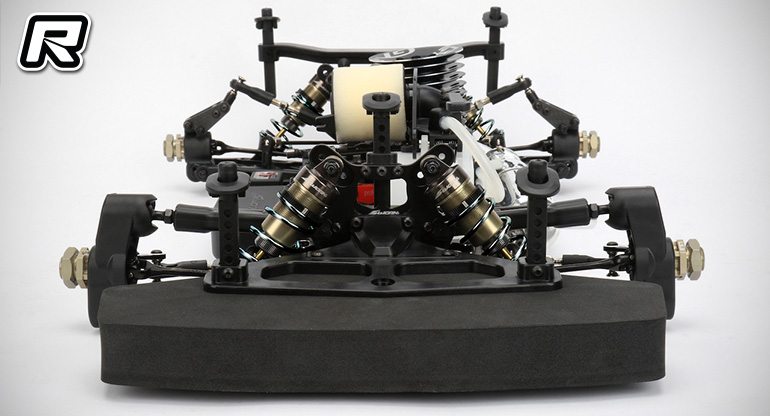

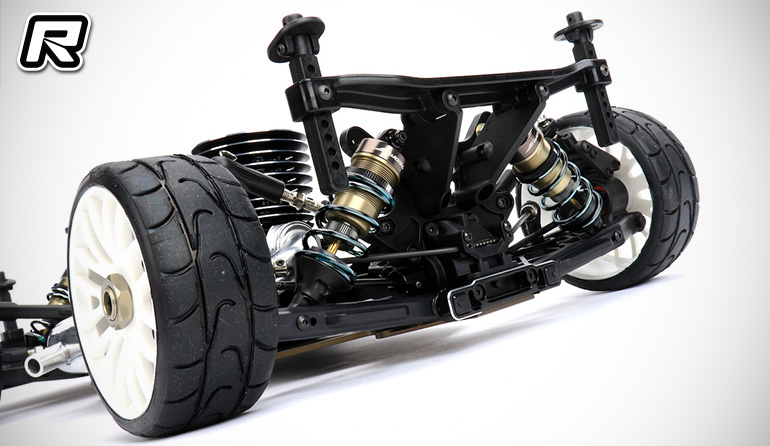

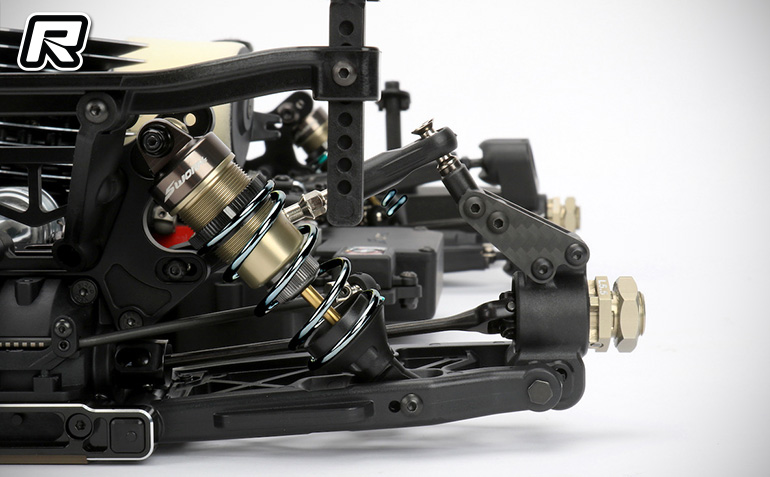

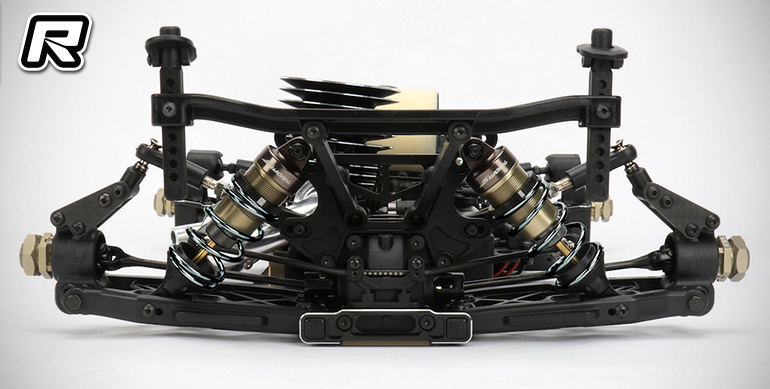

The HET differentials developed by SWorkz are also included in the kit and offer traction that is not possible with other systems. Featuring a flat front and rear shock arrangement, the shock absorbers have been optimised for this new arrangement. The suspension brackets, included with square inserts, allow the axle geometry to be adapted to any track layout. The front and rear wishbones are made of a newly developed composite material and the side pans have also been redesigned. Another new development in the GT2 is the completely new rear upright, composite material combined with carbon plates offering you the possibility for different setups.

– New weight-optimised, hard anodised T7075 base plate
– New wide chassis design
– New front & rear shock mount
– New shock absorber caps
– New 3mm optimised rear shock mount

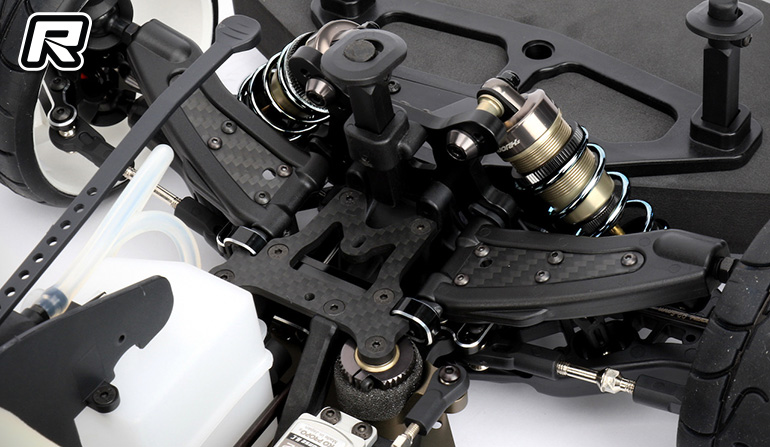

– New Ackerman steering plate
– New steering system
– New servo saver aluminium part
– New lockable servo saver nut
– New servo saver locking design
– New steering balls

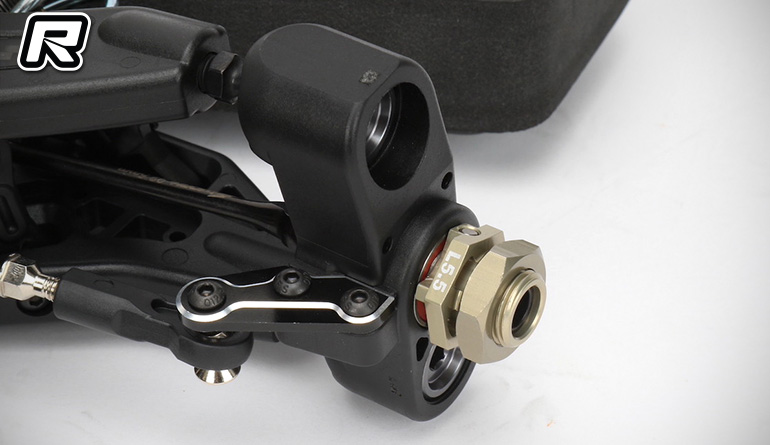

– New steering knuckle plates
– New updated wishbone bracket with square inserts
– New side pans
– New lower wishbones front & rear
– New upper wishbone front

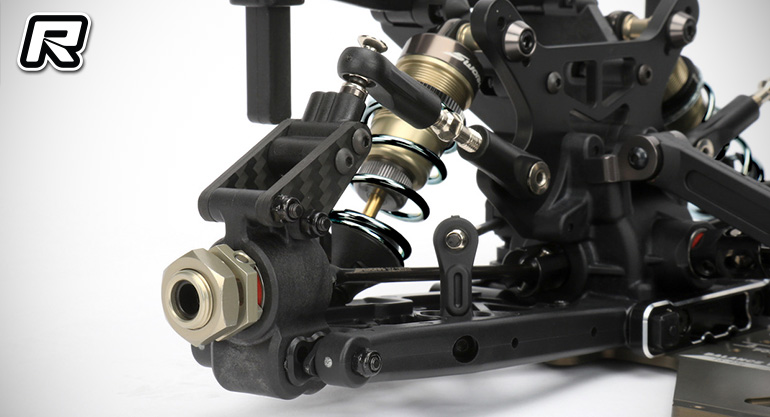

– New composite steering knuckle at the rear with carbon plates
– New multi-adjustable linkage system for the rear upper wishbones
– New anti-lock screws for shock absorbers
– HET differentials front & rear included
– New 2-speed gearbox
– 2 front chassis struts included
– More balance weight positions
– Stronger downstop area

Length: 490mm
Width: 308mm
Height: 145mm
Ground Clearance: 15mm
Wheelbase: 325-330mm
Track: F:302mm /R306mm
Gear Ratio: C:57/61,18/23T, F/R 43/13T
Weight: 3450g
