AGFRC 16.8V Direct Power Waterproof Brushless Servos

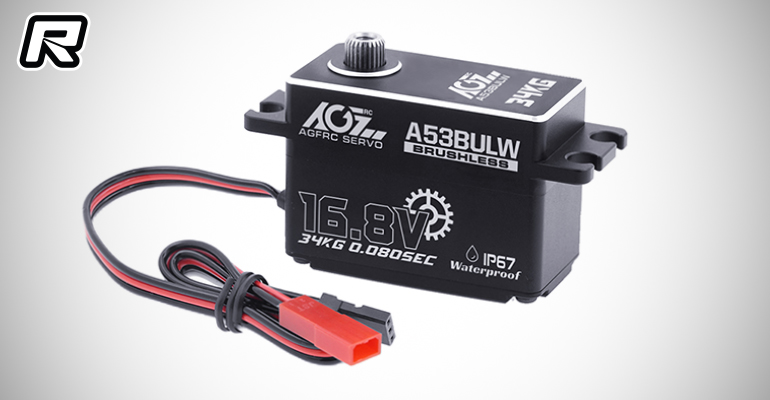

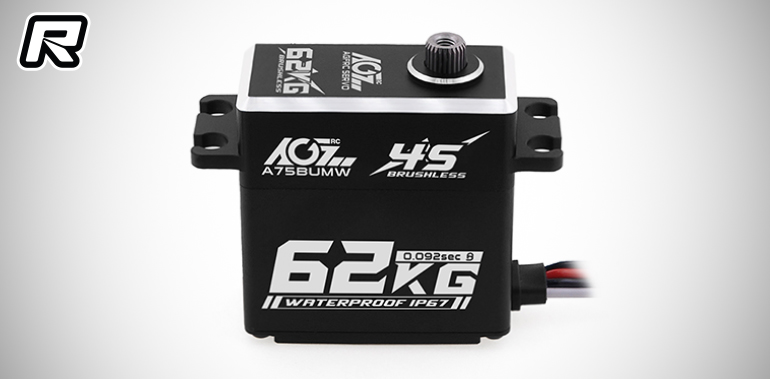

AGFRC has released two new 16.8V direct power waterproof brushless servos, the standard size A75BUMW and low profile size A53BULW. A powerful budget magnetic brushless digital servo, directly powered by 2s to 4s LiPo battery, they provide super high torque and speed. Featuring a dust-proof and splash-proof CNC shell design, and the magnetic sensor waterproof reaching IP67 grade, they can be used for harsh environments such as rainy days, muddy, sand dunes, snow, streams, and humidity. Neat and wear-resistant 4 PIN wires, allow direct connect with 3S or 4S LiPo battery. The low profile A53BULW provides 34KG superb high torque and 0.080Sec fast speed at 16.8 while the A75BUMW produces 62KG of torque and 0.092Sec fast speed. A long-life brushless motor and reinforced steel gears provide efficient, precise and smooth operation with custom parameter programming to tune the servo to your needs.
Features
Programmable HV Digital Servo
Dust-Proof And Splash-Proof CNC Shell Design
Magnetic Waterproof IP67 for Internal
Wear-resistant Connection Cable
Reinforced Steel Gears and Pin Shaft
2s to 4s LiPo Battery Compatible
A75BULW Spec
Operating Voltage: 7.4V-17V
Operating speed: 0.125sec/60° @ 12.0V
Operating speed: 0.105sec/60° @ 14.4V
Operating speed: 0.098sec/60° @ 16.0V
Operating speed: 0.092sec/60° @ 16.8V
Stall Torque: 48 kg-cm (667 oz-in) @ 12.0V
Stall Torque: 54 kg-cm (750 oz-in) @ 14.4V
Stall Torque: 60 kg-cm (834 oz-in) @ 16.0V
Stall Torque: 62 kg-cm (861 oz-in) @ 16.8V
Gear: Steels
Motor: BLS
Size: 40*20*41.5mm (1.57 x 0.78 x 1.63 in)
Weight: 88.5g
Connector Wire: TYU+JST 300 mm / 22AWG
A53BULW Spec
Operating Voltage: 7.4V-17V
Operating speed: 0.105sec/60° @ 12.0V
Operating speed: 0.092sec/60° @ 14.4V
Operating speed: 0.085sec/60° @ 16.0V
Operating speed: 0.080sec/60° @ 16.8V
Stall Torque: 26 kg-cm (361 oz-in) @ 12.0V
Stall Torque: 30 kg-cm (417 oz-in) @ 14.4V
Stall Torque: 33 kg-cm (458 oz-in) @ 16.0V
Stall Torque: 34 kg-cm (472 oz-in) @ 16.8V
Gear: Steels
Motor: BLS
Size: 40.8*20.8*30.2mm(1.60 x 0.82 x 1.19 in)
Weight: 66.5g
Connector Wire: TYU+JST 300 mm / 22AWG
Source: AGFRC [agfrc.com]
